Description

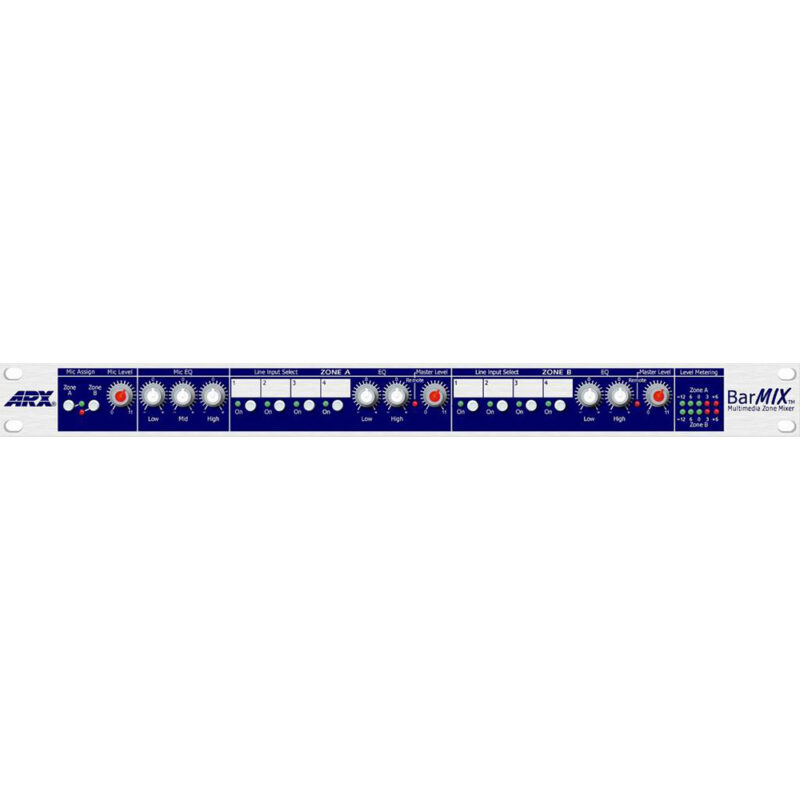

The ARX BarMIX is a multimedia zoner/mixer/switcher designed for Zone mixing installations. Its intuitive layout and precise control make it an ideal choice for such applications.
Technical Specifications: * Input Impedance: Microphone 4 KOhms balanced, Line 100 KOhms unbalanced.
* Output Level (Max): +21dB.
* Signal to Noise ratio: -90 dB ‘A’ weighted, all inputs @ unity, Master @ unity.
* Distortion @ Unity Gain: Below .005% 100Hz to 10 KHZ.
* Dynamic Range: 115 dB.
* Frequency Response: 20Hz—20KHz ±1dB.
* Power Requirements: 100-120/220-240 V AC, 50/60 Hz 8VA (8 watts) on 3 pin IEC connector.
* Weight: 5 lbs/2.2 Kg.
* Dimensions: 19″W x 1¾”H x 6″D, 482 x 44 x 155mm.
* Hi Z Input Connectors: Phono (RCA type).
* Balanced Output Connectors: Male XLR: Pin 1 Ground, Pin 2 +, Pin 3 –.
* Features Mic Channel EQ, Zone EQ, and Push to Talk Connector.
