Description

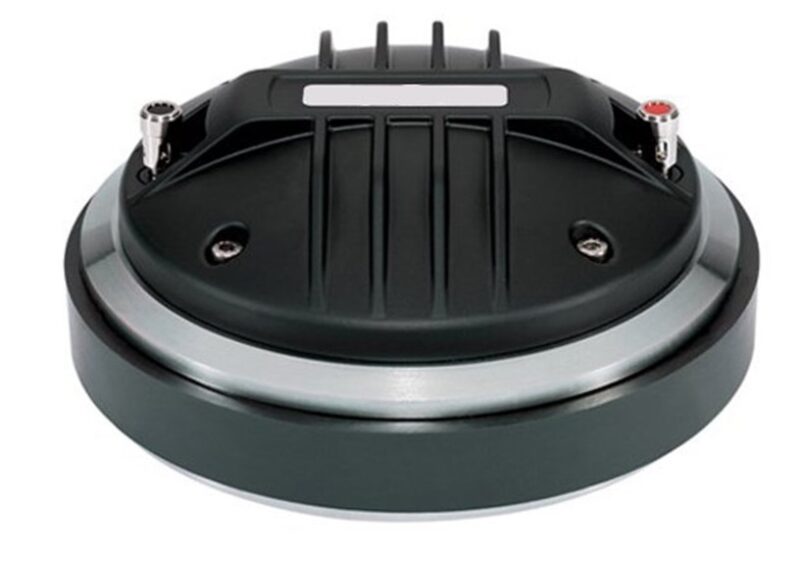

The B&C DE60TN is a high-performance 1.4-inch exit compression driver designed for professional audio systems requiring powerful and accurate high-frequency reproduction. It features a titanium diaphragm and a 75 mm (3 inch) aluminum voice coil, delivering exceptional clarity and efficiency across a wide frequency range. With a continuous program power capacity of 220 watts and a sensitivity of 107 dB, the DE60TN is ideal for demanding applications such as concert sound systems, touring rigs, and high-end installations.
The driver includes a shorting copper cap that enhances high-frequency response and reduces distortion. Its robust ferrite magnet structure ensures consistent performance, while the standard 1.4-inch throat diameter allows compatibility with a wide range of horns. The DE60TN is built for reliability and sonic precision, making it a trusted choice among audio professionals.
Specifications:
– Throat Diameter: 36 mm (1.4 inches)
– Nominal Impedance: 8 ohms
– Minimum Impedance: 8.6 ohms
– Nominal Power Handling: 110 watts AES
– Continuous Program Power: 220 watts
– Sensitivity: 107 dB (1W/1m)
– Frequency Range: 1 kHz – 18 kHz
– Recommended Crossover: 1.2 kHz or higher
– Voice Coil Diameter: 75 mm (3 inches)
– Voice Coil Material: Aluminum
– Diaphragm Material: Titanium
– Flux Density: 1.6 T
– Inductance: 0.14 mH
– Magnet Material: Ferrite
– Mounting: Four M6 holes 90° on 102 mm diameter
– Overall Diameter: 156 mm (6.1 inches)
– Depth: 66 mm (2.6 inches)
– Net Weight: 3.8 kg (8.4 lbs)
