Description

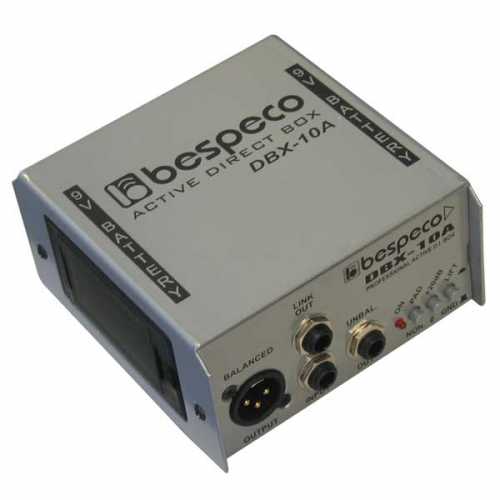

The Bespeco DBX10A is a Single Channel Active DI Box featuring normal/PAD, 0/+20dB, and GND/Lift controls.
Specifications: * Dimensions: 121 (L) x 111 (P) x 56 (H) mm
* Outputs: 2x balanced cannon male – 1x unbalanced ø6.3 mm mono jack socket
* Controls: Switch 0/-20 dB – Switch GND/Lift – Switch Normal/PAD
* Power supply: 12 Vcc power supply (not included) or 2 x 9V Batteries (not included) or PHANTOM POWER 48V
* Impedance: 600 Kohm
* Input: ø6.3 mm mono jack socket
* Input / output: ø6.3 mm mono jack socket
