Description

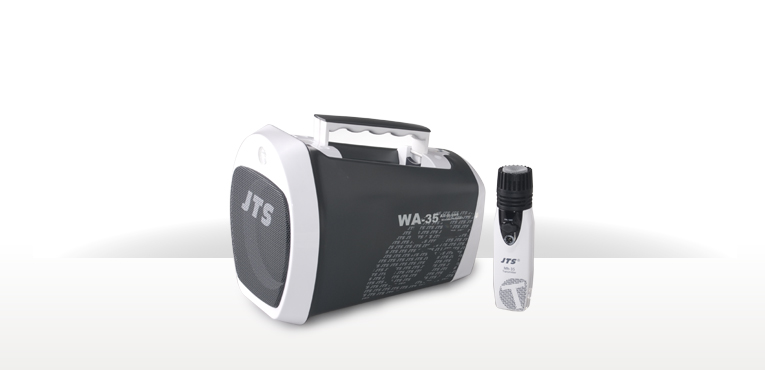

The JTS WA-35/MH-35 is an All-in-One Portable Wireless Active Speaker system that includes a UHF PLL Handheld Transmitter (MH-35 microphone). The WA-35 speaker features a Class D amplifier providing 60 watts with a 4″ full-range speaker, capable of providing powerful and transparent sound for up to 200 audiences. It is equipped with an MP3 player that includes an FM radio receiver, SD card reader, and USB. It also includes an alarm siren (2-tone and wailing sound) and an LED lamp (continuous light, automatic SOS light, and automatic flashing light) for public evacuation purposes, and is designed to be splashproof.
Specifications (WA-35 Speaker): * Power Output: 60W
* Speaker: 4″ (4Ω full range driver)
* Built-in Audio: [USB/SD/BT] MP3/FM
* S/N Ratio: 98 dB
* THD+N: 0.1% (1KHz @ 1W)
* Tone Adjustment: ±8dB @ 1KHz
* Frequency Response: 50~20,000Hz (or 50~16,000 Hz for Audio Frequency Response)
* DC Power: 19~20V (48W or above is recommended)
* Li-ion Battery: 14.8V/2300mAh (Averaging of 4 hours charging time)
* Dimensions (m/m): 145.5mm(W) x 179.4mm(H) x 223mm(D)
* Weight: 1.75 Kg
* Carrier Frequency Range: 502~960MHz (or 520-960 MHz)Specifications (MH-35 Handheld Transmitter/Microphone): * Frequency Preparation: PLL Synthesized Control
* Carrier Frequency Range: 520-960 MHz (or 863 – 865 MHz for Channel 70)
* RF Outputs: 10mW
* Stability: ±10KHz
* Frequency Deviation: ±48KHz
* Audio Frequency Response: 50~16,000 Hz
* Battery: UM3, AA Alkaline x 1
* Spurious Emissions: <-60 dBC
* Dimensions (m/m): 35.6(W) x 125mm(H) x 32.5mm(D)
