Description

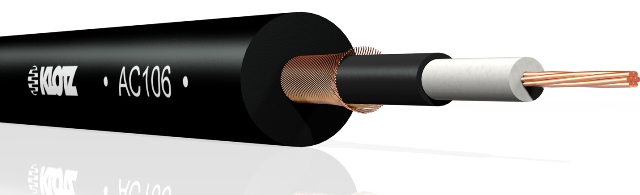

The Klotz AC106SW is an unbalanced prime audio/instrument cable, suitable for connecting guitars, keyboards, and other line level devices. It features a 0.22 mm² conductor cross section (AWG 24) and double shielding, consisting of a conductive plastic layer and a bare copper spiral shield with 95% coverage, resulting in immunity from noise and disturbance. The insulation is made of thick polypropylene (PP) foam, which contributes to its low capacitance of 95 pF/m (cond./shield). The cable has an extra thick PVC outer jacket for high mechanical reliability.
Specifications: * Conductor construction: Stranded bare copper, 7x 0.20 mm
* Conductor cross section: 0.22 mm² (AWG 24)
* Shield: Conductive plastic layer + bare copper spiral shield (95% coverage)
* Outer jacket: PVC, matt
* Capacitance (cond./shield): 95 pF/m
* Conductor resistance: < 85 Ω/km * Insulation resistance: > 1 GΩ x km
* Operating temperature: -25°C / +70°C
* Min. bending radius: 30 mm
* Cable color: Black
