Description

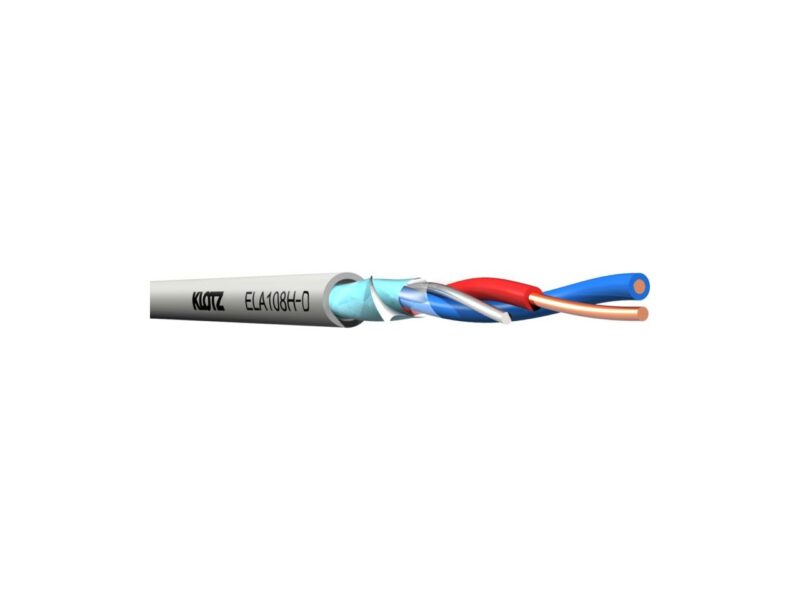

The Klotz ELA108H-D is an ELA installation cable designed for analogue installations, specifically for 100 Volt public address systems (PA). It is a solid conductor cable in a “twisted pair” version. It is robust, halogen-free, and flame retardant, featuring twisted pairs and a foil screen.
Key Specifications: * **Type:** ELA installation cable – 100 V line, 1x 2x 0.8 mm solid – FRNC – Dca
* **Conductor:** Solid, uncoated copper (Ø 0.80mm)
* **Conductor Cross Section:** 0.50 mm²
* **Isolation:** LSZH (Low Smoke Zero Halogen), color code according to VDE 0815
* **Shielding:** AL/PETP foil + solid bare copper drain wire, Ø 0.8 mm
* **Outer Jacket/Sheathing:** FRNC (Flame Retardant and Non Corrosive), grey
* **Total Diameter:** 6.5 mm
* **Conductor Resistance:** 36.6 Ω/km
* **Mutual Capacitance:** < 120 nF/km
* **Isolation Resistance:** > 100 MΩ x km
* **Max. Operating Voltage:** 225 V
* **Test Voltage (cond. / cond.):** 500 V
* **Test Voltage (cond. / shield):** 2000 V
* **Operating Temperature:** -30°C to +70°C
* **Min. Bending Radius:** 5x overall diameter
* **CPR Class:** Dca – s1, d1, a1 acc. to EN50575 (IEC 60332)
