Description

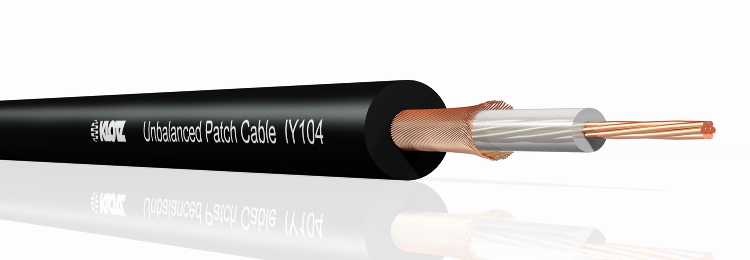

Klotz IY104SW is an unbalanced pro audio patch cable featuring a 0.22 mm² conductor cross section (AWG 24) and is extremely flexible. It is a coaxial cable with PVC sheathing and a small overall diameter of 4.0 mm.
Specifications: * Type of cable: Unbalanced analogue patch cable
* Colour: Black
* Outer diameter: 4.0 mm
* Core thickness/Conductor cross section: 0.22 mm² (AWG 24)
* Conductor construction: Stranded bare copper, 7 x 0.20 mm
* Shield: Bare copper spiral shield
* Capacitance: 130 pF/m
* Minimum bending radius: 20 mm
* Operating temperature: -20 °C/+70 °C
* Conductor resistance: < 85 Ω/km
* Insulation resistance: > 1 GΩ x km
