Description

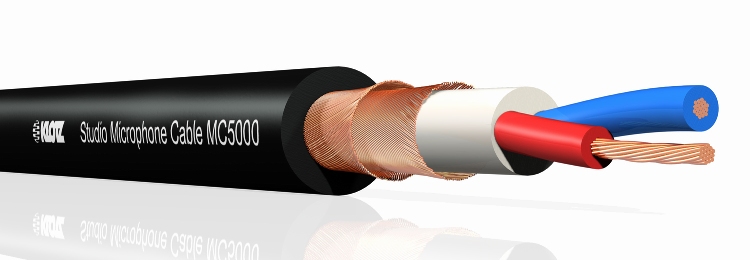

The Klotz MC5000 is a high-end, studio-grade microphone cable ideal for long microphone cable runs and designed to give the best possible results in the studio. It features a 0.50 mm² conductor cross section (AWG 20) and a very low capacitance of 55 pF/m (17 pF/ft). A double, counter-rotating, bare copper spiral shield provides 100% cover for the inner jacket, reliably screening the cable from electromagnetic interference. It is also a popular choice for high-end Hi-Fi cables.
Specifications: * Application: Patch & microphone cable
* Signal transmission: Symmetrical
* Core arrangement: 2 cores twisted to a pair
* Inner conductor cross section: 0.50 mm²
* Cond. construction: stranded bare copper, 28 x 0.15 mm
* Insulation: polyethylene (PE)
* Inner jacket: extruded inner covering from PVC
* Shielding: double, counter-rotating, bare copper spiral shield
* Outer jacket: PVC
* Overall diameter: 7.0 mm
* Capacitance cond./cond.: 55 pF/m
* Capacitance cond./shield: 100 pF/m
* Conductor resistance: < 37.5 Ω/km
* Insulation resistance: > 0.1 GΩ x km
* Operating temperature: -25°C / +70°C
* Min. bending radius (installed): 5x overall diameter
