Description

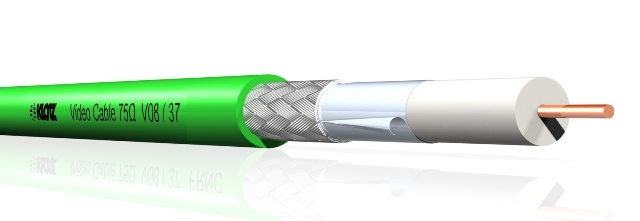

The Klotz V08/37 (or V08/37H) is a 75 Ω HD-SDI digital video cable designed for transmitting analogue and digital video data, suitable for installations with medium transmission distances.
Specifications include: * Characteristic Impedance: 75 Ω ± 1%
* Inner Conductor: Solid bare copper wire, Ø 0.80 mm
* Insulation: Foam-Skin PE, gas injected, Ø 3.7 mm
* Shielding: AL/PET/AL double-layer foil + tinned copper braid (95% coverage)
* Outer Jacket: FRNC (Flame-Retardant and Non-Corrosive)
* Overall Diameter: 6.0 mm
* Capacity: 55 pF/m
* Velocity of Propagation: 81 %
* Screening Attenuation: > 90 dB
* DC Resistance (Inner Conductor): 35 Ω/km
* DC Resistance (Outer Conductor): 8 Ω/km
* Working Temperature: -20°C / +70°C
