Description

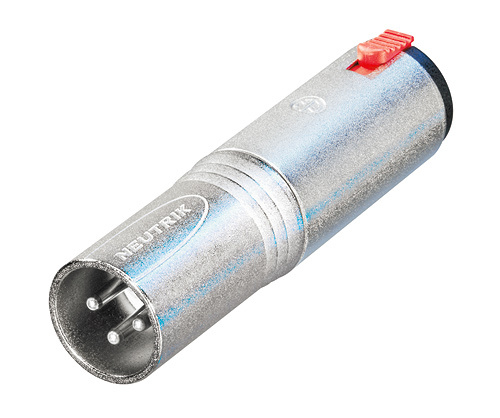

The Neutrik NA3MJ is an adapter based on the XX XLR Series that bridges the gap between 3-pole XLR connections and a stereo, locking 1/4″ jack. It features a diecast shell for durability and provides a solution for connection issues between systems that do not usually communicate.
Specifications: * Connector 1: 1x XLR 3-Pin Male
* Connector 2: 1x 1/4″ TRS Female
* Contact Plating: 2 µm Ag
* Contacts: Bronze (CuBe2) (jack)
* Insert: Polyamide (PA 6.6 30 % GR)
* Shell: Zinc diecast (ZnAl4Cu1) with gal Cu/Ni plating
* Contact Resistance: ≤ 3 mΩ (XLR), ≤ 6 mΩ (Jack)
* Dielectric Strength: 1.5 kV dc / > 1 kVdc (XLR/Jack)
* Insulation Resistance: > 2 GΩ
