Description

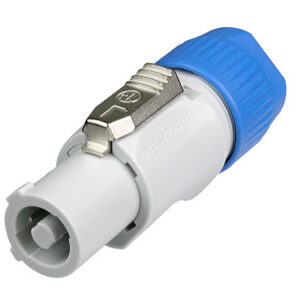

The Neutrik NAC3FCB is a locking 3-pole AC power connector designed for power-out connections in professional audio, video, and lighting equipment. It is part of the powerCON series and features a blue color code to indicate power output.
This connector replaces appliance couplers wherever a rugged solution is needed. It includes a twist-lock mechanism for secure mating and is rated for currents up to 20 A at 250 V AC. The NAC3FCB is not designed for hot-plugging and should only be connected or disconnected when the device is powered off.
Specifications:
– Type: Locking 3-pole AC power connector (power-out)
– Color: Blue
– Rated Current: 20 A
– Rated Voltage: 250 V AC
– Termination: Quick-lock
– Locking: Twist-lock mechanism
– Compliance: IEC 60320, UL recognized
– Application: Power output for professional equipment (e.g., amplifiers, lighting rigs, AV gear)
