Description

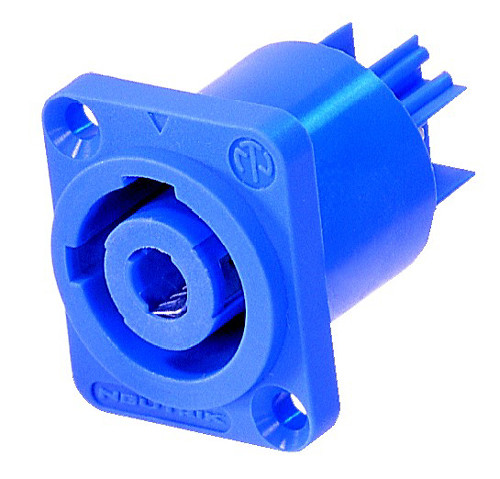

The Neutrik NAC3MPA is a locking 3-pole chassis connector designed for AC power input in professional audio, video, and lighting equipment. It is part of the powerCON series and features a blue color code to indicate power-in functionality.
This connector is intended for panel mounting and mates with the NAC3FCA cable connector. It includes a secure twist-lock mechanism and quick-lock terminals for fast installation. The NAC3MPA is rated for up to 20 A at 250 V AC and is not designed for hot-plugging—connections should only be made when the device is powered off.
Specifications:
– Type: Locking 3-pole AC power chassis connector (power-in)
– Color: Blue
– Rated Current: 20 A
– Rated Voltage: 250 V AC
– Termination: Quick-lock
– Locking: Twist-lock mechanism
– Mating Connector: NAC3FCA
– Compliance: IEC 60320, UL recognized
– Application: Power input for amplifiers, lighting rigs, AV gear
