Description

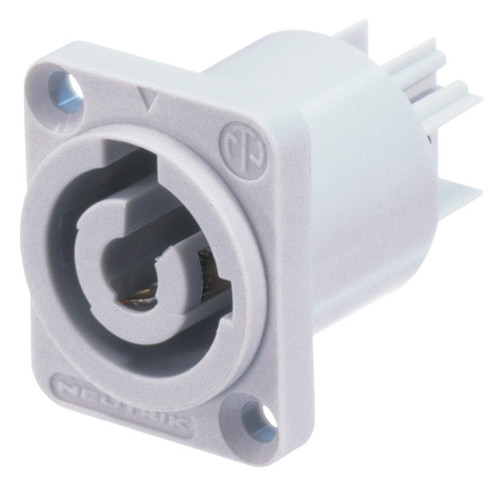

The Neutrik NAC3MPB-1 is a powerCON chassis connector, power-out (grey), with 3/16” flat tab terminals. It is a locking 20 A / 250 V AC appliance coupler with 3 contacts for line, neutral, and pre-mating safety ground. It features a fast and easy twist lock latching system, is extremely robust and reliable, and has an ergonomic design.
Specifications: * Gender: Male
* Rating (Europe): EN 61984: 20 A 250 V AC
* Rating (USA): UL 1977: 20 A 250 V AC
* Contact resistance: ≤ 3 mΩ
* Dielectric strength: 4 kVdc / 2.8 kVac
* Insulation resistance: > 0.1 GΩ (after damp heat test IEC 68-2-30)
* Number of electrical contacts: 2 + PE
* Lifetime: > 1000 mating cycles
* Wiresize: 2.5mm² / 12 AWG
* Locking device: Quick Lock
* Mounting direction: Front mounting
* Chassis shape: D
* Contact plating: 2 µm Ag
* Locking element: Steel Ck67
* Shell: Polyamide (PA 6.6 30 % GR)
* Contacts: Bronze (CuNi1Si0.2)
* Flammability: UL 94 V-0
* Protection class: IP 20
* Temperature range: -30 °C to +80 °C
