Description

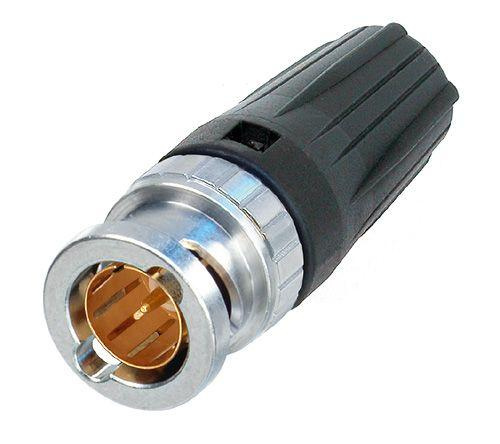

The Neutrik NBNC75BFG7 is a rearTWIST HD BNC cable connector with a true 75 Ohm design, making it suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high-density applications and offers color coding. It is ideal for recessed bulkheads where accessing the “head” of the connector may be difficult, as it turns from the back. It features a snug-fit center pin insert for tactile feedback and shield and jacket crimp technology to prevent an exposed grounding braid. The connector uses precise Swiss machined brass parts for outstanding durability.
Specifications:
Impedance: 75 Ω
Rated Voltage: <50 V
VSWR: ≤1.050/>32 dB up to 1 GHz; ≤1.065/>30 dB up to 2 GHz; ≤1.100/>26 dB up to 3 Ghz
Contact resistance (inner): ≤ 3 mΩ
Contact resistance (outer): ≤ 2 mΩ
Dielectric strength: 1.5 kVdc
Insulation resistance: > 5 GΩ
Cable O.D.: 4.7 mm
Cable retention: > 30 N (Center)
Crimp size (pin): 1.6 mm square crimp (acc. IEC 60803, die designation 2)
Crimp size (shield): 5.0 mm hex crimp (acc. MIL22520/5-43(B))
Lifetime: > 1000 mating cycles
Locking device: Bayonet
Temperature range: -30 °C to +85 °C
