Description

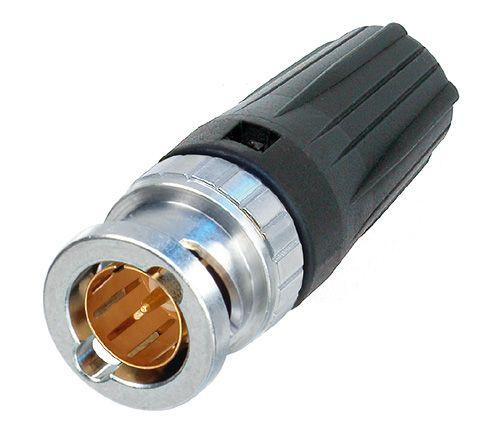

The Neutrik NBNC75BJP9 is a rearTWIST HD BNC cable connector offering a true 75 Ω design, suitable for HD applications. The patented rearTWIST boot allows for easy access even in high-density applications and offers color coding. These connectors are ideal for recessed bulkheads, turning from the back instead of the front for easy locking/unlocking. They feature a snug-fit center pin insert providing tactile feedback, and shield and jacket crimp technology prevents an exposed grounding braid on cable assemblies, ensuring excellent cable protection and retention. The connector is made with precise Swiss machined brass parts for outstanding durability and meets stringent HDTV/DVD requirements with a minimum lifetime of 1000 mating cycles.
**Specifications:** * **Impedance:** 75 Ohms
* **Maximum Frequency:** 3 GHz
* **Connection Type:** BNC 75 Ω
* **Gender:** male / Plug (Pin)
* **Termination Style:** Crimp
* **Orientation:** Straight
* **Polarity:** Standard
* **Mounting Style:** Cable Mount / Free Hanging
* **Cable O.D.:** 6.3 mm
* **Cable Retention:** > 30 N (Center)
* **Crimp Size (Shield):** 6.47 mm (hex) acc. IEC 60803 (die designation E)
* **Crimp Size (Pin):** 1.6 mm (square) acc. IEC 60803 (die designation 2)
* **Contact Resistance (Inner):** ≤ 3 mΩ
* **Contact Resistance (Outer):** ≤ 2 mΩ
* **Dielectric Strength:** 1.5 kVdc
* **Insulation Resistance:** > 5 GΩ
* **Rated Voltage:** <50 V
* **VSWR:** ≤1.050/>32 dB up to 1 GHz; ≤1.065/>30 dB up to 2 GHz; ≤1.100/>26 dB up to 3 Ghz
* **Lifetime:** > 1000 mating cycles
* **Locking Device:** Bayonett
* **Temperature Range:** -30 °C to +85 °C
* **Suitable Cables:** Belden 1505F, Bryant BD SD53F, Cordial CVI 08-37 HD, Klotz VD083LP 0.8L/3.7DZ, Tesca Presto
