Description

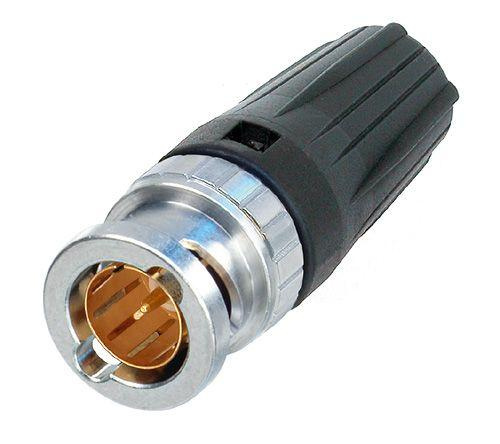

The NBTC75BNN5 is part of Neutrik’s rearTWIST BNC series, designed for high-density broadcast and video environments. It features a patented rearTWIST boot that allows locking/unlocking from the back, making it ideal for recessed bulkheads or tight patch panels.
This connector supports HD-SDI and UHD video formats and includes a leading ferrule to simplify assembly with multicore or miniature cables. It is compatible with various cable types including Belden 1277R, 1278R, 1279R, and Draka 0.41/1.9 AF.
Specifications:
– Type: BNC plug (male), rearTWIST HD Tiny
– Impedance: 75 Ohms
– Orientation: Straight
– Termination: Crimp (pin: 1.6 mm square, shield: 4.53 mm hex)
– Mounting: Free-hanging (in-line)
– Cable Compatibility: Small-diameter cables (e.g., Belden 1277R, Draka 0.41/1.9 AF)
– Features: Patented rearTWIST boot, leading ferrule for easy assembly
– Application: HD-SDI, UHD video, broadcast, patch panels
