Description

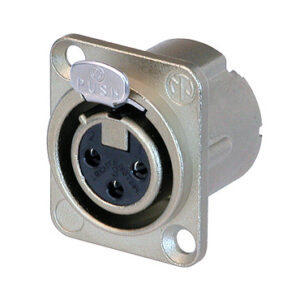

The Neutrik NC3FD-LX is a 3 pole female receptacle with solder cups, Nickel housing, and silver contacts. It is part of the DLX series, featuring a compact all-metal housing with an ingenious duplex ground contact for excellent RF protection and shielding. It is designed for installation compatibility with industry standard D mounting dimensions.
**Specifications include:** * **Poles:** 3
* **Housing:** Nickel, Zinc diecast (ZnAl4Cu1)
* **Contacts:** Silver plating (2 µm Ag), Bronze (CuSn6)
* **Rated Current per Contact:** 16 A
* **Rated Voltage:** < 50 V
* **Contact Resistance:** ≤ 5 mΩ
* **Dielectric Strength:** 1.5 kVdc
* **Insulation Resistance:** > 10 GΩ (initial)
* **Capacitance between contacts:** ≤ 4 pF
* **Lifetime:** > 1000 mating cycles
* **Wiresize:** max. 2.5 mm² / max. 14 AWG (Solder contacts)
* **Locking Device:** Latch lock
* **Protection Class:** IP 40
* **Temperature Range:** -30 °C to +80 °C
