Description

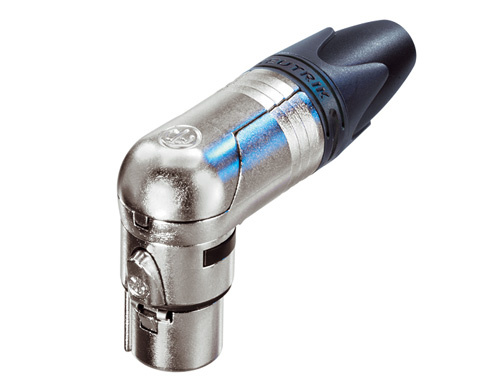

The Neutrik NC3FRX is an extra slim right-angle XLR female connector with 5 selectable cable outlet positions. It features a unique cage design of the female contact for low contact resistance and high integrity, and the female contact incorporates a solder barrier. It has an improved chuck-type strain relief and a boot with a polyurethane gland for high protection to cable bending stresses.
Specifications: * Connection Type: XLR
* Gender: Female
* Contact resistance: ≤ 3 mΩ
* Dielectric strength: 1.5 kVdc
* Insulation resistance: > 2 GΩ (initial)
* Rated current per contact: 16 A
* Rated voltage: < 50 V
* Cable O.D.: 3.5 - 8.0 mm
* Lifetime: > 1000 mating cycles
* Wiresize: max. 2.5 mm² / max. 14 AWG (Solder contacts)
* Protection class: IP 40
* Temperature range: -30 °C to +80 °C
* Contact plating: 2 µm Ag
* Shell plating: Nickel
