Description

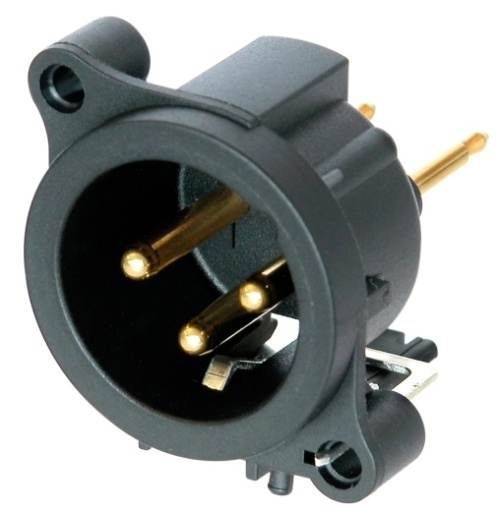

The Neutrik NC3MAAV-0 is a 3 pole male XLR receptacle designed for vertical PCB mount. It is the most cost-effective round plastic body XLR PCB mount panel connector. The grounding option connects the ground contact to the shell ground, but not to the front panel and Pin 1. It features a “Tulip” type contact design with high contact pressure for highest durability and selective gold plated contact and PCB termination area for best conductivity and solderability. The front panel cutout and PCB layout are 100% compatible with the A series.
Specifications: * Electrical:
* Contact resistance: ≤ 6 mΩ
* Dielectric strength: 1,5 kVdc
* Insulation resistance: > 10 GΩ (initial)
* Rated current per contact: 6 A
* Rated voltage: < 50 V
* Capacitance between contacts: ≤ 4 pF
* Mechanical:
* Insertion force: ≤ 20 N
* Withdrawal force: ≤ 20 N
* Lifetime: > 1000 mating cycles
* Wiring: vertical PCB mount
* Locking device: Latch lock
* Mounting direction: Rear mounting
* Chassis shape: A
* Mounting: A-Screw
* Material:
* Contacts: Brass (CuZn35Pb2)
* Shell: Polyamide (PA 6.6 30 % GR)
* Environmental:
* Standard compliance: IEC 61076-2-103
* Protection class: IP 40
* Solderability: Complies with IEC 68-2-20
* Temperature range: -30 °C to +80 °C
* Flammability: UL 94 HB
* Approvals: UL
