Description

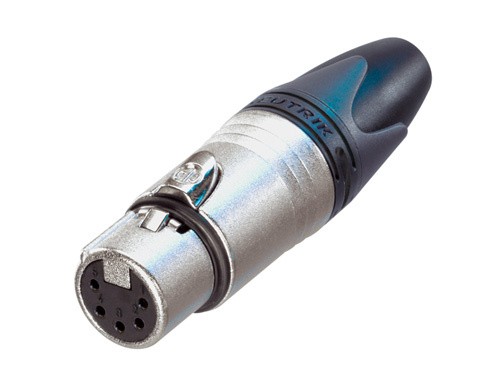

The Neutrik NC5FXX is a 5-pole female XLR cable connector. It features a unique cage design for low contact resistance and high integrity, and a female contact that incorporates a solder barrier. The connector includes an improved solid metal latch for easier handling and a rugged zinc die-cast shell.
Key Specifications: * Contact Resistance: ≤ 3 mΩ
* Dielectric Strength: 1.5 kVdc
* Insulation Resistance: > 10 GΩ (initial)
* Rated Current per Contact: 7.5 A
* Rated Voltage: < 50 V
* Lifetime: > 1000 mating cycles
* Cable O.D.: 3.5 – 8.0 mm
* Wiring: Solder contacts
* Locking Device: Latch lock
* Standard Compliance: IEC 61076-2-103
* Protection Class: IP 40
* Temperature Range: -30 °C to +80 °C
