Description

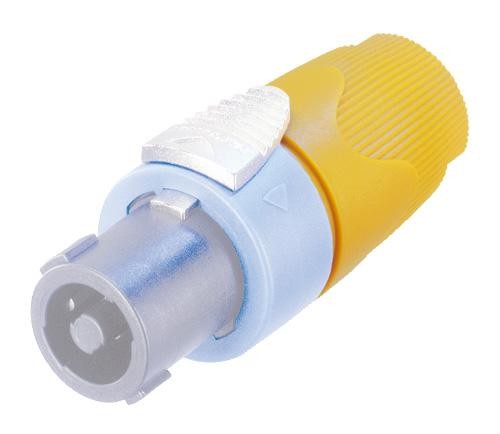

The Neutrik NL4FX-4 is a speakON female cable connector featuring solid contacts with screw-type terminals, including stranded wire protection, which also offers solder termination. It is known for its current rating of 40 A rms continuous (up to 50 A audio signal, duty cycle 50%), ease of assembly (only 3 parts), high impact materials for long-lasting reliability, and a Quick Lock latch locking device. It includes a 1-piece strain relief and chuck for 7 to 14.5 mm cable O.D.
Specifications: * Connection Type: speakON
* Gender: female
* Rated current per contact: 40 A rms continuous / 50 A audio signal, duty cycle 50 %
* Rated voltage: 250 V ac (Note: speakON is NOT to be used as an AC mains or power supply connector)
* Cable O.D.: 7 – 14.5 mm
* Wiresize: 4 mm² / 6 mm² (screw type terminals/soldering) or 12 AWG / 10 AWG
* Lifetime: > 5000 mating cycles
* Temperature range: -30 °C to +80 °C
* Contact resistance: < 2 mΩ (after lifetime)
* Insulation resistance: > 1 GΩ (after dampheat)
* Dielectric strength: 4 kVdc (peak)
* Contact plating: 4 µm Ag
* Wiring: screw type terminals or soldering
* Locking device: Quick Lock (latch)
