Description

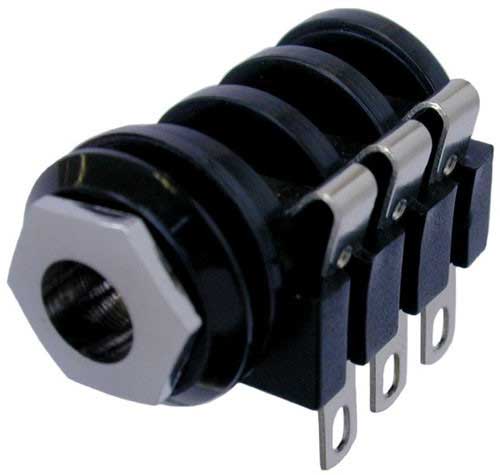

The Neutrik NMJ6HC-S is a high-quality 6.35 mm (1/4″) stereo jack connector featuring switching contacts and a chrome ferrule. It is designed for panel mounting and includes standard solder lugs for secure wiring. The connector supports stereo A-gauge plugs according to EIA RS-453 standards and is widely used in audio equipment, patch panels, and instrument interfaces.
Its wide-body design and retention spring ensure stable mating and long-term durability, rated for over 10,000 mating cycles. The NMJ6HC-S offers low contact resistance (<15 mΩ), high insulation resistance (≥1 GΩ @ 500 V DC), and a dielectric strength of 1 kV DC. It handles up to 3 A per contact and 0.5 A for switch contacts, making it suitable for both signal and low-power routing.
Specifications:
- Type: 6.3mm stereo jack socket, switched
- Mounting: Panel mount with nut included
- Contacts: 3 (stereo + switch)
- Contact Resistance: <15 mΩ
- Insulation Resistance: ≥1 GΩ @ 500 V DC
- Dielectric Strength: 1 kV DC
- Rated Current: 3 A per contact, 0.5 A @ 50 V for switch contact
- Mating Cycles: >10,000
– Insertion Force: <30 N
- Withdrawal Force: >10 N
– Panel Thickness: <4.7 mm
- Wiring: Solder lugs
- Locking: Retention spring
- Compliance: Mates with stereo A-gauge plugs (EIA RS-453)
