Description

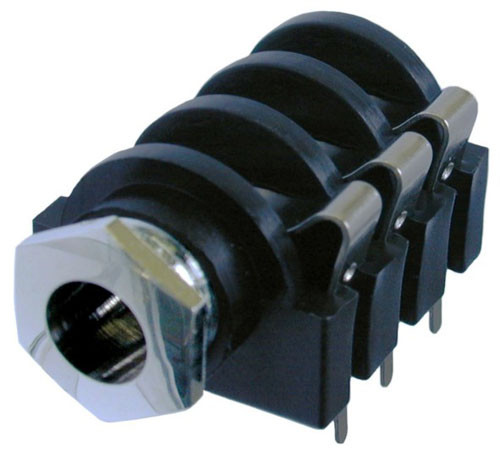

The Neutrik NMJ6HCD2 is a 1/4″ stereo jack, switched, with a chrome ferrule and straight PCB pins, and includes a mounting nut. It features a wide body and extremely durable contacts, mating with all stereo A-gauge plugs according to the EIA RS-453 standard.
Key Specifications: * **Connection Type:** Jack
* **Gender:** Female
* **Wiring:** Horizontal PCB mount
* **Locking device:** Retention spring
* **Mounting direction:** Rear mounting
* **Panel thickness:** < 4.7 mm
* **Lifetime:** > 10000 mating cycles
* **Chassis shape:** 11.4 mm
* **Contact resistance:** < 15 mΩ (initial), < 30 mΩ
* **Dielectric strength:** 1 kVdc
* **Insulation resistance:** ≥ 1 GΩ @ 500 V dc
* **Rated current per contact:** 3 A
* **Rated current per contact (Switch contact):** 0.50 A @ 50 V
* **Switching contacts:** 3
* **Temperature range:** -25 °C to +70 °C
* **Standard compliance:** EIA RS 453, IEC 60603-11
