Description

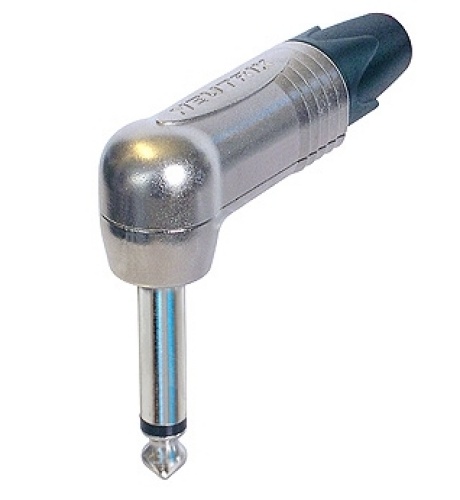

The Neutrik NP2RX is a 1/4″ professional right-angle phone plug with 2 poles, nickel contacts, and a nickel shell. It is part of the heavy-duty professional phone plug series and is the thinnest available A-gauge 1/4″ plug with a unique Neutrik chuck-type strain relief. This plug is suitable for guitar applications, audio cables, snakes, speakers, amplifiers, and mixing desks, featuring an all-metal housing for durability and EMI protection, and precision machined one-piece contacts.
Key Specifications: * **Connection Type:** Plug
* **Gender:** Male
* **Electrical:** Dielectric strength 1 kVdc, Insulation resistance > 2 GΩ (initial), Rated voltage < 50 V
* **Mechanical:** Lifetime > 1000 mating cycles, Cable O.D. 4 – 7 mm, Wiresize 1 mm² (18 AWG), Wiring: Solder contacts
* **Material:** Contacts: Brass (CuZn39Pb3), Contact plating: 2 µm Ni (Su), Insert: Polyamide (PA 6.6 30 % GR), Shell: Zinc diecast (ZnAl4Cu1), Shell plating: Nickel, Strain relief: Polyacetal (POM)
* **Environmental:** Temperature range -20 °C to +65 °C, Standard compliance: IEC 60603-11 / EIA RS-453, Solderability: Complies with IEC 68-2-20
