Description

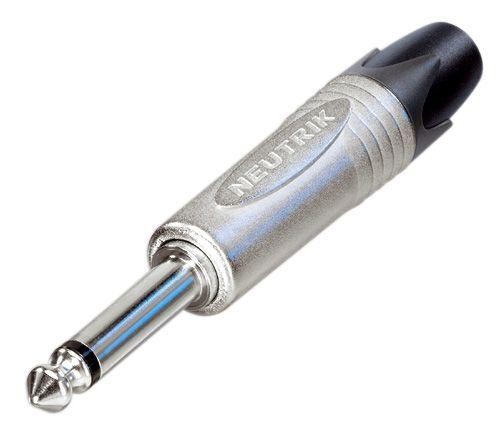

The Neutrik NP2X is a 1/4″ professional phone plug, 2 pole, with nickel contacts and a nickel shell. It is a heavy-duty professional phone plug series that is an extra slim A-gauge 1/4″ plug, featuring Neutrik’s unique chuck type strain relief for reliable cable retention. It serves applications such as guitar, audio cables, snakes, speakers, amplifiers, and mixing desks.
Specifications: * Connection Type: Plug
* Gender: Male
* Standard: 1/4 inch
* Number of Positions: 2 Position
* Termination Style: Solder contacts
* Contact Plating: 2 µm Ni (Nickel)
* Shell Plating: Nickel
* Shell Material: Zinc diecast (ZnAl4Cu1)
* Contact Material: Brass (CuZn39Pb3)
* Rated Voltage: < 50 V * Dielectric Strength: 1 kVdc * Insulation Resistance: > 2 GΩ (initial)
* Rated Current per Contact: depends on mating connector
* Lifetime: > 1000 mating cycles
* Cable O.D.: 4 – 7 mm
* Wiresize: 1 mm², 18 AWG
* Temperature Range: -20 °C to +65 °C
* Standard compliance: IEC 60603-11 / EIA RS-453
