Description

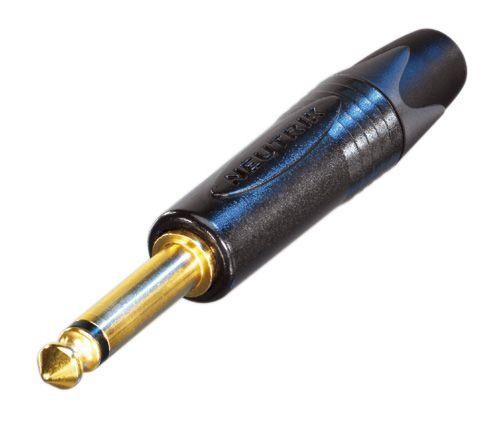

The Neutrik NP2X-B is a 2-pole 1/4″ professional phone plug featuring gold contacts and a black shell. It is part of the heavy-duty professional phone plug series (Plug X Series) that improves on the existing C series by offering the thinnest available A-gauge 1/4″ plug on the market with a unique Neutrik chuck type strain relief for reliable cable retention.
The plug serves various applications, including guitar cables, audio cables, snakes, speakers, amplifiers, and mixing desks. It is designed for the highest packing density with an extra-slim 1/4″ plug and a robust diecast shell.
Specifications: * **Connection Type:** Plug, 2 pole 1/4″ professional phone plug (Mono TS)
* **Gender:** Male
* **Contacts:** Gold (0.2 µm Au plating)
* **Shell:** Black Zinc diecast (ZnAl4Cu1)
* **Insert:** Polyamide (PA 6.6 30 % GR)
* **Strain Relief:** Proven chuck type strain relief (Polyacetal (POM))
* **Cable O.D.:** 4 – 7 mm
* **Wiresize:** 1 mm², 18 AWG
* **Wiring:** Solder contacts
* **Lifetime:** > 1000 mating cycles
* **Temperature Range:** -20 °C to +65 °C
* **Standard Compliance:** IEC 60603-11 / EIA RS-453
