Description

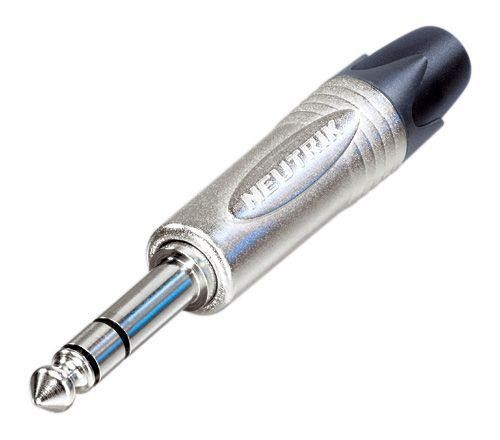

The Neutrik NP3X is a 3-pole 1/4″ professional phone plug with nickel contacts and a nickel shell. It is the thinnest available A-gauge 1/4″ plug on the market, featuring a unique Neutrik chuck-type strain relief for reliable cable retention. The heavy-duty professional phone plug series improves on the design of the existing C series. The Plug X Series is suitable for various applications such as guitar applications, audio cables, snakes, speakers, amplifiers, and mixing desks.
Key Specifications: * Connection Type: Plug
* Standard: 1/4 in
* Gender: Male
* Number of Positions: 3 Position
* Wiring: Solder contacts
* Termination Style: Solder
* Contact Plating: 2 µm Ni (Su) / Nickel
* Contacts: Brass (CuZn39Pb3)
* Shell: Zinc diecast (ZnAl4Cu1)
* Shell plating: Nickel
* Insert: Polyamide (PA 6.6 30 % GR)
* Strain relief: Polyacetal (POM)
* Bushing: Polyacetal (POM) + PU
* Rated Voltage: < 50 V
* Dielectric strength: 1 kVdc
* Insulation resistance: > 2 GΩ (initial)
* Lifetime: > 1000 mating cycles
* Cable O.D.: 4 – 7 mm
* Wiresize: 1 mm² / 18 AWG
* Temperature range: -20 °C to +65 °C
* Standard compliance: IEC 60603-11 / EIA RS-453
