Description

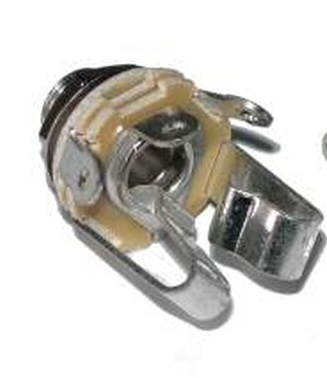

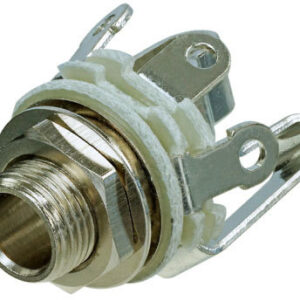

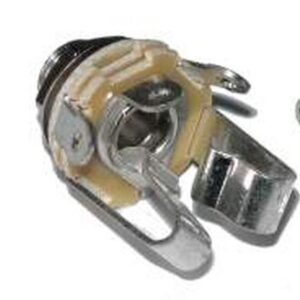

The Rean NYS230 is a commercial-grade 6.35 mm (1/4″) stereo jack socket featuring tip, ring, and sleeve terminals. It is an open-frame, non-switched connector with 0.205″ Faston-style solder tabs, making it ideal for quick and secure wiring in audio panels, pedals, and rack systems.
It includes a washer and nut for panel mounting and supports panel thicknesses up to 3.5 mm. The connector offers solid mechanical retention and reliable electrical performance, with a contact resistance of ≤10 mΩ and insulation resistance ≥2000 MΩ. It is rated for over 5,000 mating cycles.
Specifications:
– Type: 1/4″ stereo (TRS) open jack
– Contacts: 3-pole (tip, ring, sleeve)
– Termination: 0.205″ Faston solder tabs
– Mounting: Panel mount with washer and nut
– Panel Thickness: Up to 3.5 mm
– Contact Resistance: ≤10 mΩ
– Insulation Resistance: ≥2000 MΩ
– Dielectric Strength: 500 V DC
– Mating Cycles: >5,000
– Insertion/Withdrawal Force: 5–40 N
– Materials: Brass, bronze, steel, epoxy phenolic
– Finish: Nickel-plated contacts and hardware
