Description

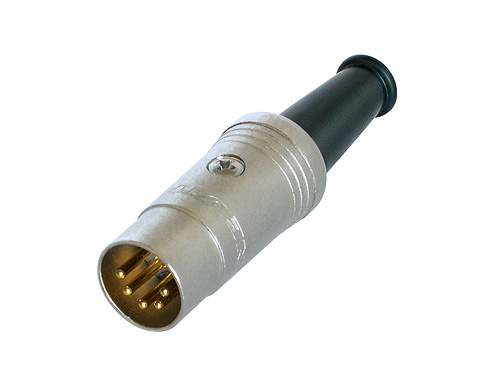

The Rean NYS322G is a 5-Pin DIN Cable Connector, which is a Circular DIN Connector. It is a male plug with a gold-plated contact and a nickel shell plating. It is a DIN standard connector with a free-hanging mounting style and crimp termination. It is part of the NYS series and is suitable for cables with a diameter of 5 mm. The NYS322G is noted for having gold-plated contacts.
Specifications: * Product Type: Circular DIN Connector, Plug
* Standard: DIN
* Number of Contacts: 5 Contact
* Contact Gender: Pin (Male)
* Shell Style: Plug
* Mounting Style: Free Hanging
* Termination Style: Crimp
* Cable Diameter: 5 mm
* Series: NYS
* Contact Plating: Gold
* Shell Plating: Nickel
* Rated Voltage: 50 VAC
* Contact Resistance: <10 mΩ
* Insulation Resistance: >1000 MΩ (Initial)
* Dielectric Strength: 500V dc
* Lifetime: >1000 Mating Cycles
