Description

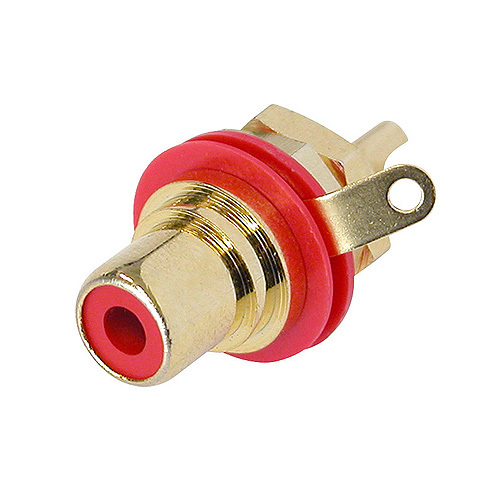

The REAN NYS367-2 is a gold-plated colored RCA/Phono Chassis Mount Socket. It is known for its excellent cost-performance ratio, attractive design, and reliable functionality.
Specifications: * Connection Type: Phono (“RCA/Cinch”) Electrical
* Contact Resistance: ≤10 mΩ
* Insulation Resistance: >2000 MΩ (Initial)
* Rated Voltage: 0.5 VAC
* Insertion and Withdrawal Force: 5-20N
* Lifetime: >5000 Mating Cycles
* Housing Material: Brass
* Nut Material: Brass
* Termination Style: Solder Cup
* Contact Plating: Gold
* Body Material: Metal
* Color: Red (also available in other colors)
* Gender: Socket
* Number of Ports: 1
* Maximum Panel Thickness: 0.11″ / 3 mm
* Temperature Range: -13 to 158°F / -25 to 70°C
