Description

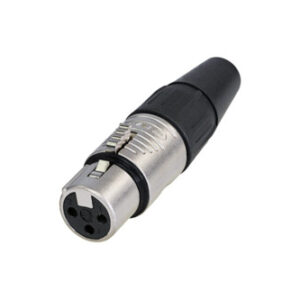

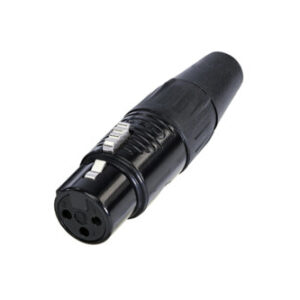

The REAN RC3F is an XLR female cable connector (3 Position, Female) designed for professional audio applications. It is a standard XLR connector featuring a free-hanging cable termination style and a straight orientation.
Key specifications include: * **Gender:** Female
* **Connection Type:** XLR
* **Number of Positions:** 3
* **Termination Style:** Cable
* **Mounting Style:** Free Hanging
* **Orientation:** Straight
* **Rated Current:** 10 A
* **Contact Resistance:** ≤ 5 mΩ
* **Insulation Resistance:** > 1.5 GΩ
* **Lifetime/Mating Cycles:** > 1000 cycles
* **Insertion Force:** ≤ 30 N
* **Withdrawal Force:** ≤ 20 N
* **Cable O.D.:** 4 – 7 mm
* **Wiresize:** 1.5 mm² / 16 AWG
* **Housing Material:** Zinc (often Nickel plated)
* **Contact Material:** Bronze
* **Contact Plating:** Silver
* **Series:** XLR
