Description

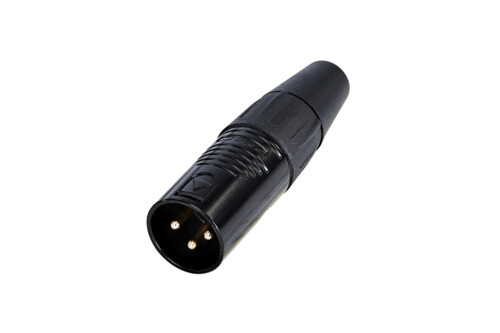

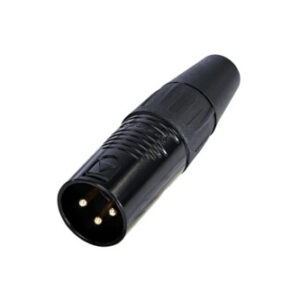

The RC3M is an XLR plug (male) connector manufactured by REAN. It features a nickel-plated housing and silver-plated contacts.
Key specifications include: * Enclosure material: Zinc alloy
* Lifetime: >1000 Mating Cycles
* Rated Current: 10 A
* Contact Resistance: ≤ 5 mΩ
* Insulation Resistance: > 1.5 GΩ
* Insertion Force: ≤ 30 N
* Withdrawal Force: ≤ 20 N
* Cable O.D.: 4 – 7 mm
* Wire size: 1.5 mm² (16 AWG)
