Description

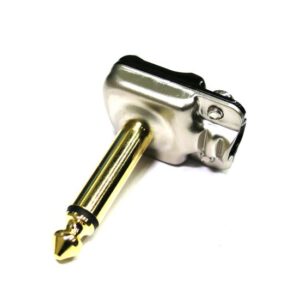

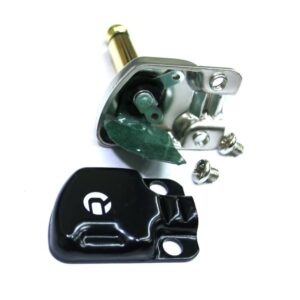

The REAN RP2RCF is a 1/4″ Mono Right-Angle Pancake Plug, also described as a Low-Profile Right Angle Pancake Plug. It is available with nickel or black covers and features a heavy-duty cable clamp for strain relief. The RP2RCF-B model likely indicates the black-plated cover (similar to RP2RCF-BAG).
Specifications:
Mechanical: * Lifetime: > 1000 mating cycles
* Insertion and Withdrawal force: ≤ 60N
* Cable O.D.: 4 – 7 mm (some sources state 6-7mm)
* Wiresize: 0.22 mm² / 24 AWGEnvironmental: * Temperature range: -20 °C to +70 °C
* Flammability: UL 94 HB
* Solderability: complies with IEC68-2-20Electrical: * Contact resistance: depends on mating connector
* Dielectric strength: 0.5 kV dc (some sources state > 1.0 kV dc)
* Insulation resistance: > 1 GΩMaterial: * Sleeve & Inner: Brass
* Sleeve plating: Nickel
* Inner plating: Nickel / Gold
* Shell: Steel
* Shell plating: Nickel / Black (for the -B version)
