Description

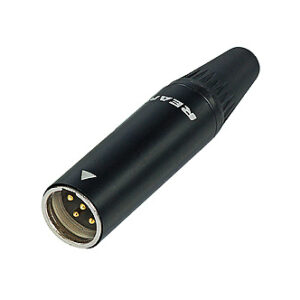

The REAN RT3MC-B is a 3-pin male Mini (Tiny) XLR cable connector with a black plated housing and gold plated contacts.
Specifications: * Gender: Male
* Standard: Mini (Tiny) XLR
* Number of Positions: 3
* Housing Material: Zinc (Black Plating)
* Pin Material: Brass (Gold Plating)
* Contact Resistance: <10 mΩ
* Insulation Resistance: >1 GΩ
* Dielectric strength: >500 V rms
* Rated current per contact: ＜5 A
* Cable O.D. range: 2.0–4.5 mm
* Wiresize: 0.22 mm² (24 AWG)
* Lifetime: >1000 Mating Cycles
