Description

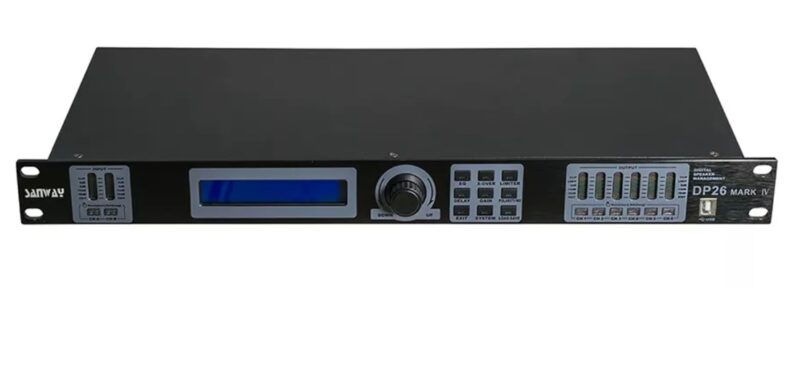

The Sanway DP26 is a 2-In 6-Out Sound Speaker Management Processor.
Key Features: * 96kHz sampling frequency, 24-bit A/D and D/A converter, 32-bit DSP digital sound processor.
* Built-in USB and RS 485 COM ports.
* Program, Recall, Copy, Save, and Password functions.
* 6-band parameter EQ on the input channel (Frequency: 20Hz~20KHz; Gain: -20 dB~+20 dB; Bandwidth: 0.05oct~3oct).
* Independent Delay, Polarity, and Mute control for each input and output channel.
* Crossover functionality for each output channel (LPF and HPF) with adjustable parameters, including Filter types (Linkwitz-Riley, Bessel, Butterworth) and Slopes (12dB/oct, 18dB/oct, 24dB/oct, 48dB/oct).
* Limiter with adjustable parameters on each output channel (Threshold value: -20dBu~+20dBu).Specifications: * Display: 2*24 LCD, 8-LED input/output level (Mute and Editing mode can be displayed).
* Input Impedance (Balance): 20KΩ
* Output Impedance (Balance): 100Ω
* Input Level: ≤+25dBu
* Frequency Response: 20Hz~20KHz ±0.5dB
* S/N R: >110dB
* THD: <0.01% @OUTPUT=0dBu/1KHz
* Crosstalk of Channels: >80dB@1KHz
* CMRR: >70dB@1KHz
* Output Gain Range: -12dB~+12dB (step: 0.1dB)
* Delay Range: 0~1000mS
* Power: ≤25W
* Power Supply: AC 110V/220V 50Hz/60Hz
* Dimension (L×W×H): 482×232×44mm
* Gross Weight: 5.0kg
