Description

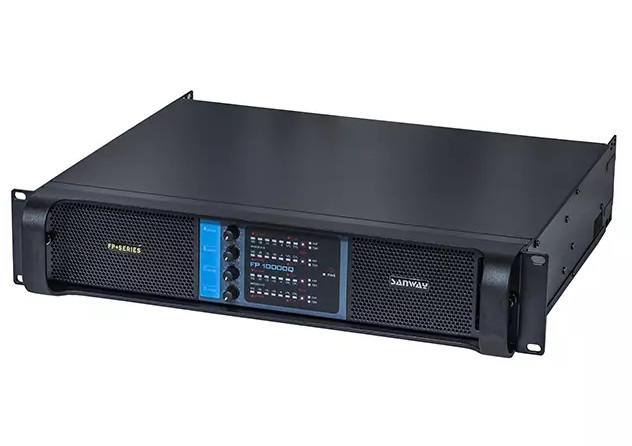

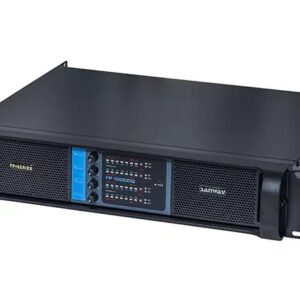

The FP10000Q from Sanway Audio is a professional-grade 4-channel amplifier based on Class TD topology, offering high power density and reliable thermal performance in a 2U rackmount chassis. It is modeled after the Lab Gruppen FP+ series and is widely used in concert sound, subwoofer amplification, and large-scale PA systems.

Power Output:
– 4 × 1300 W @ 8 Ohms
– 4 × 2100 W @ 4 Ohms
– 4 × 2500 W @ 2 Ohms
– 2 × 4200 W bridged @ 8 Ohms
– 2 × 5000 W bridged @ 4 Ohms

Key Features:
– Class TD amplifier topology: combines Class B audio quality with Class D efficiency
– Regulated Switch Mode Power Supply (R.SMPS): maintains output under voltage fluctuations
– Protection: short circuit, open circuit, thermal, clip limiter, DC protection
– Cooling: Dual variable-speed fans with front-to-rear airflow
– Inputs: Balanced XLR (Neutrik-compatible)
– Outputs: Speakon NL4 and binding posts
– Dimensions: 483 × 88 × 396 mm (W × H × D)
– Weight: ~13.5 kg

Applications:
– Touring sound systems
– Subwoofer and full-range speaker amplification
– Nightclubs, stadiums, and large venues
