Description

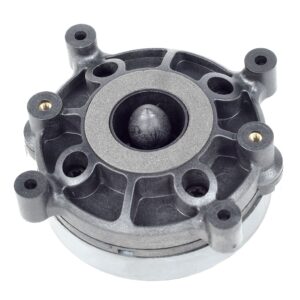

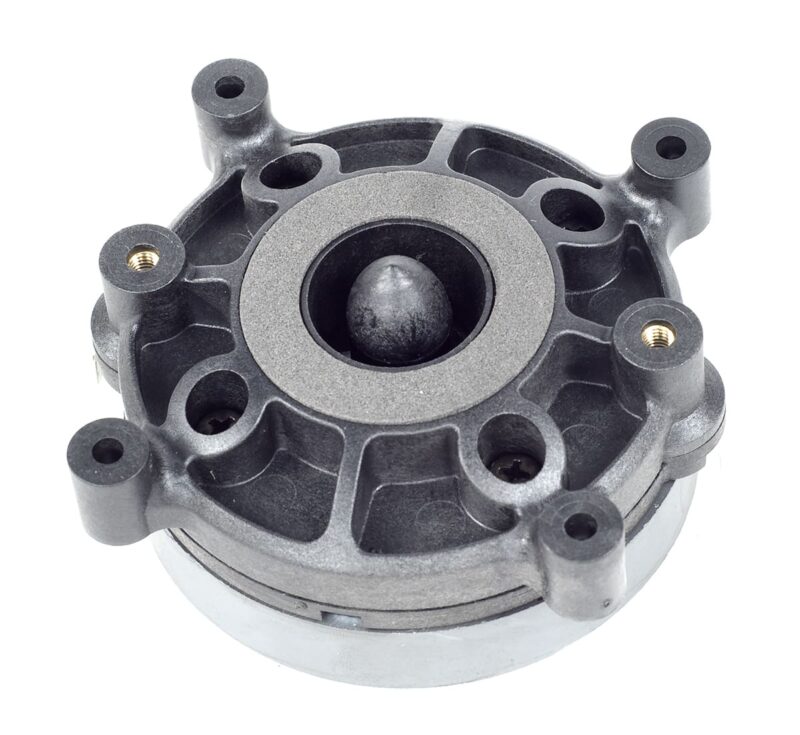

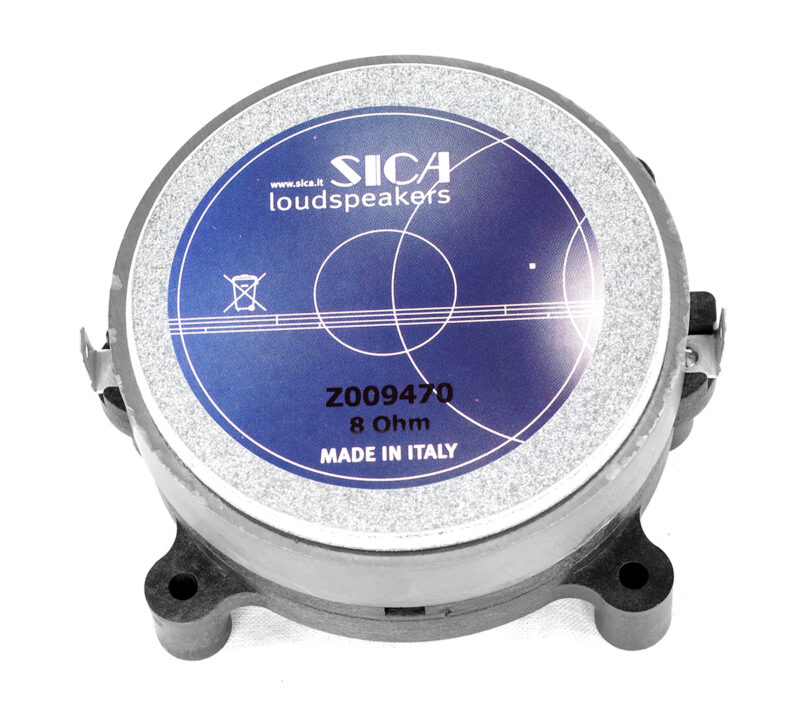

The SICA CD 83.26/380 (Code: Z009470) is a Compression Driver.
Specifications:
Nominal voice coil diameter: 1″ (25mm)
Nominal throat diameter: 1″ (25.4mm)
Magnet material: Ferrite
Sensitivity: 107.3 dB
Power (Rated Power AES (2000 – 20000 Hz)): 20W
Music power: 40 W
Nominal Impedance: 8Ω
Recommended Crossover Frequency: 2.5kHz
Resonance frequency: 1500 Hz
Net Weight: 0.8kg
Diaphragm: Tri-acetate
