Description

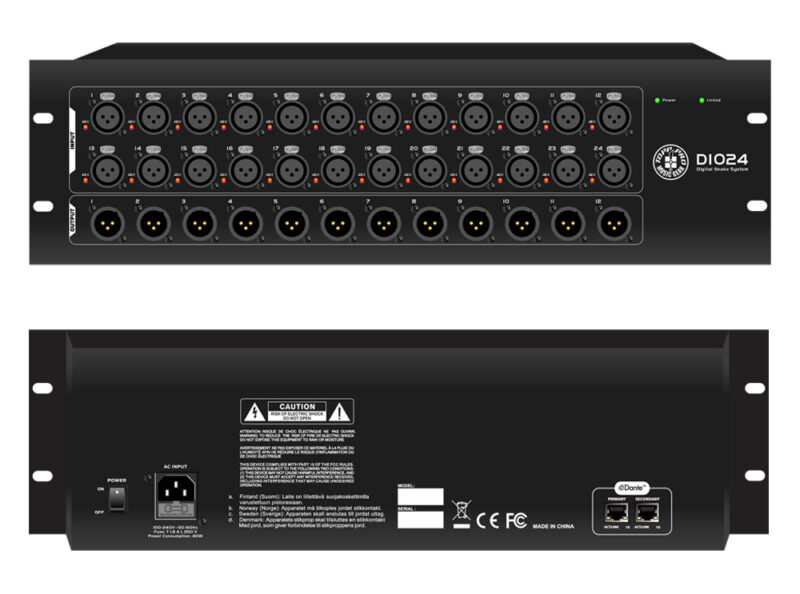

The Topp Pro DIO24 is a DANTE-enabled digital snake designed for use with Topp Pro DM series digital mixers (compatible with DM48.20 / DM24.12 / DM20.12). It allows for remote access and digital gain control for the DM Series Digital Mixers.
Specifications: * **Inputs:** 24 x XLR mic analog inputs
* **Outputs:** 12 x XLR analog outputs
* **Data I/O:** 2 x Ethernet
* **Phantom Power:** +48VDC on 24 channels (with independent digital control and light display)
* **Input Digital Gain Control:** 0 – 50 dB
* **Transmission:** 24 x 12 DANTE network real-time digital signal transmission
* **Maximum Input Level:** +20dBu
* **Maximum Output Level:** +20dBu
* **SNR (Signal to Noise Ratio):** 108dB
* **Distortion (THD&N) to Main Output:** <0.03% at 0dBu 1KHz
* **ADC Dynamic Range:** -91dBu
* **DAC Dynamic Range:** 114dB
* **Internal Processor:** 32-bit, floating point
* **ADC, DAC bit depth:** 32-bit
* **EIN (Input noise):** 125dB
* **Operating free-air temperature range:** 0ºC~40ºC
* **Storage temperature range:** -20ºC ~60ºC
