Description

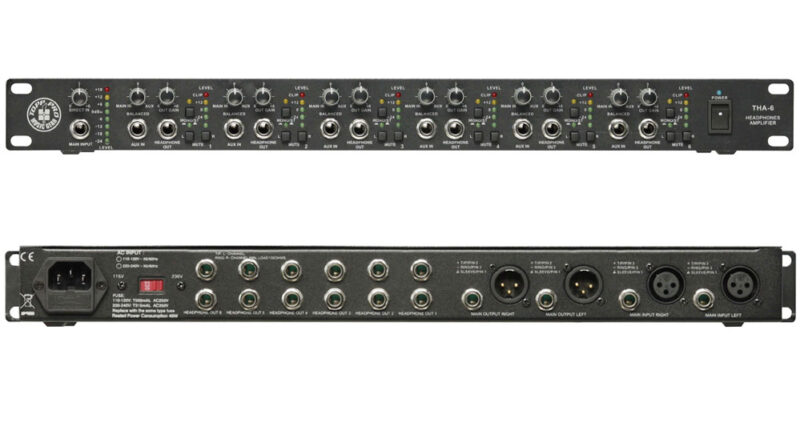

The ToppPro THA-6 is a 6-Channel Headphone Amplifier with a servo balanced input.
Key Specifications: * Main Input: XLR and 1/4″ jack connectors, HF filtered, servo balanced input. Impedance: 50 kOhms balanced, 25 kOhms unbalanced. Max input level: +21 dBu balanced and unbalanced.
* AUX IN and DIRECT IN input: 1/4″ TRS connectors (tip=left, ring=right, sleeve=ground), unbalanced. Max input level: +21 dBu unbalanced.
* Output: XLR and 1/4″ Jack connectors. Max output level: +21 dBu Balanced and Unbalanced.
* Frequency response: 10 Hz to 50 kHz, +/-3 dB.
* Noise: >90 dB, Unweighted, 22 Hz to 22 kHz (>95 dB@+4 dBu).
* THD: 0.005% typ. @+4 dBu, 1kHz, Gain 1.
* Power Amplifier Max output power: +21 dBm. Min output impedance: 100 Ohms.
* Indicators: Input level (8-digit LED display), Output level (4-digit LED display).
* Physical Dimensions (WxDxH): 483 x 217 x 44mm (19″ x 8.84″ x 1.7″).
* Net weight: 2.9kg/6.39 lbs.
