Description

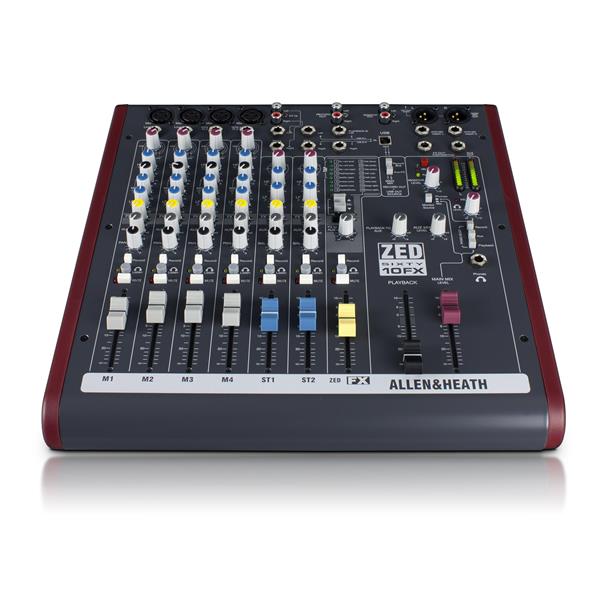

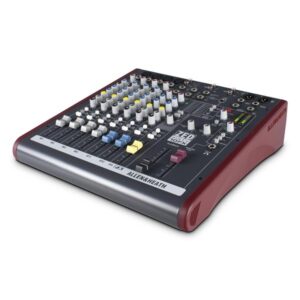

The Allen & Heath ZED60-10FX is a multipurpose mixer for live sound and stereo recording, ideal for small bands and venues. It is a compact, portable analog mixer featuring premium quality 60mm faders on all channels for a classic mixing experience.

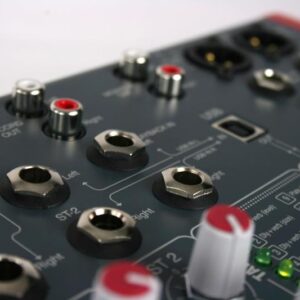

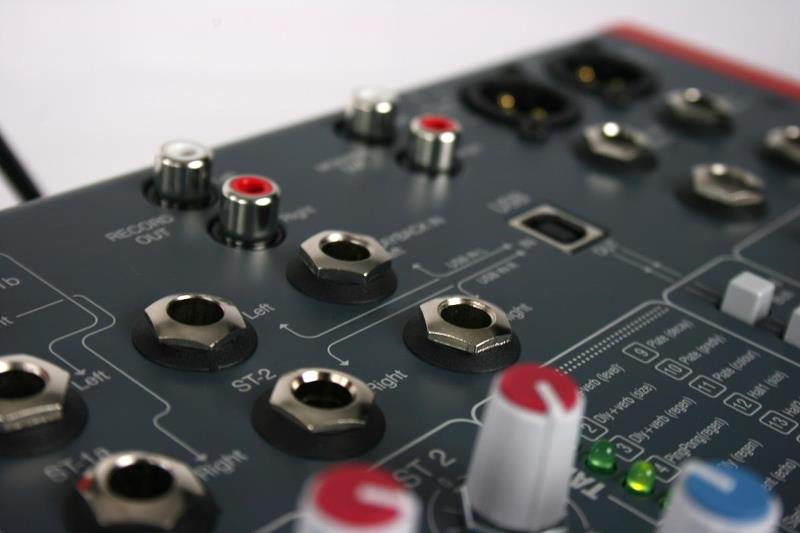

Key specifications include: * **Inputs:** 4 Mic/Line inputs (2 with Class A FET high impedance and DI level switching with Gain Boost), 2 stereo inputs (TRS jack sockets and 1 with RCA).
* **Outputs:** XLR main stereo outputs with inserts, separate 2-track record outputs, 1 Pre-fade Aux send, 1 FX send, comprehensive monitoring.
* **Audio Interface:** 2 In / 2 Out USB Audio Interface with configurable stereo audio in/out.

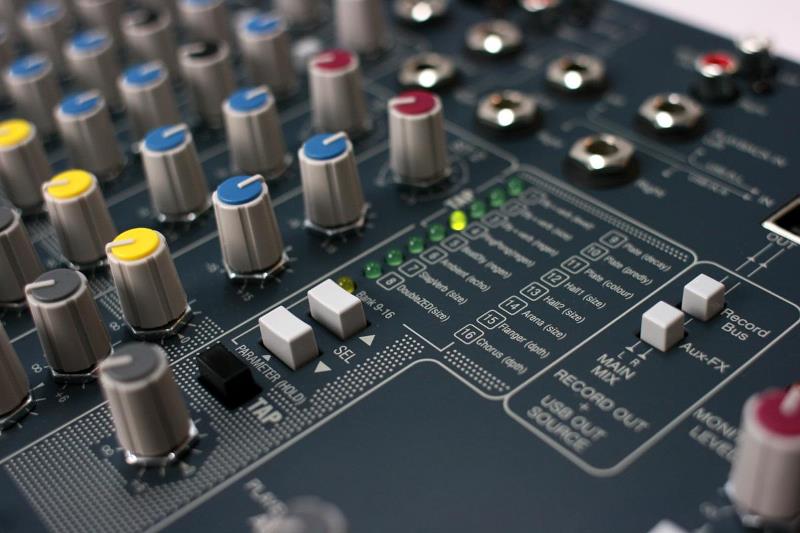

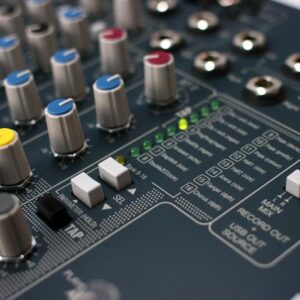

* **Features:** Onboard Digital FX, Global 48V Microphone phantom power, responsive 3-band EQ with sweepable mid (MusiQ).**Operating Levels (Examples):** * Mono Channel (XLR) Input: -10 to –60dBu for Nominal (+11dBu In Max)
* L/R Outputs (XLR): 0dBu Nominal (+21dBu Maximum)
* Aux & FX Outputs (Jack Sockets): 0dBu Nominal (+21dBu Maximum)**Frequency Response (Examples):** * Mic In to Mix L/R Out, 30dB Gain: +0.5/-1dB 10Hz to 30kHz
* Line In to Mix L/R Out 0dB Gain: +0.5/-1dB 10Hz to 25kHz
