Description

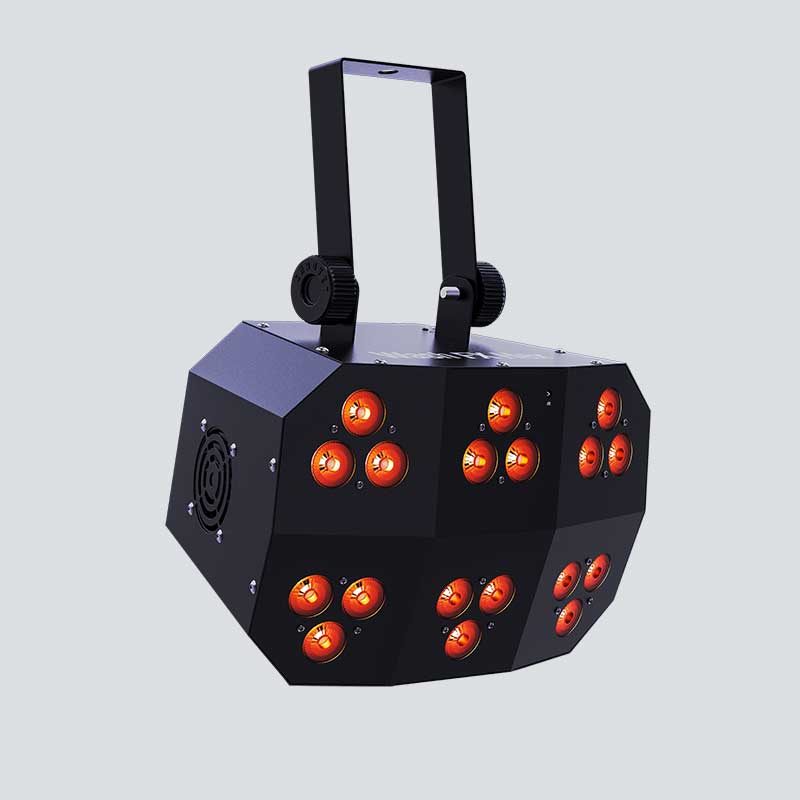

The Chauvet DJ Wash FX HEX is a versatile LED lighting fixture designed to deliver vibrant color washes and dynamic visual effects. Equipped with 18 powerful 10W RGBAW+UV LEDs, it produces a broad spectrum of colors and natural-looking color temperatures, making it ideal for uplighting, wall washing, and stage effects.

Wash FX HEX features six chasing zones that can be used for eye-candy effects or as a traditional wash light. It supports multiple control modes including DMX (3, 6, 11, or 40 channels), Master/Slave, standalone, and infrared remote control via the optional IRC-6. The fixture is also compatible with D-Fi USB for wireless DMX operation.

With a beam angle of 44° and field angle of 77°, it provides wide coverage and intense output (3,204 lux at 6.6 ft). Built-in automated programs include fade and snap effects, and power linking allows multiple units to be connected easily. The Wash FX HEX fits best in the CHS-40 VIP gear bag for transport and protection.

**Specifications:**
– **LEDs:** 18 x 10W RGBAW+UV LEDs
– **Beam Angle:** 44°
– **Field Angle:** 77°
– **Lux:** 3,204 @ 6.6 ft
– **Control Modes:** DMX (3/6/11/40 channels), Master/Slave, IRC-6, D-Fi USB, standalone
– **Chasing Zones:** 6
– **Dimming:** 0–100% with 4 dimming curves
– **Strobe Rate:** 0–20 Hz
– **Power Linking:** Up to 20 units @ 120V
– **Power Input:** 100–240V AC, 50/60Hz
– **Dimensions:** 12.2 x 8.3 x 6.3 in (310 x 210 x 160 mm)
– **Weight:** 6.6 lb (3 kg)
– **Ideal For:** DJs, mobile entertainers, stage lighting, uplighting, wall washing
