Description

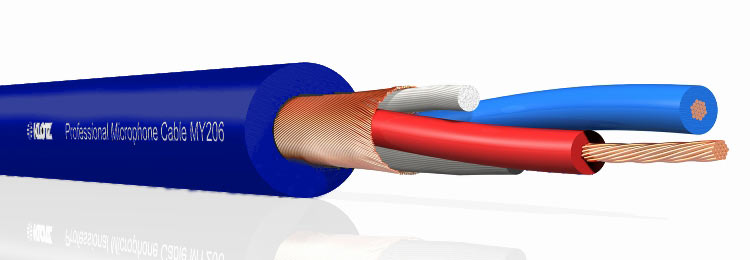

The Klotz MY206BL is a blue microphone cable known for its flexibility, even at extreme temperatures, due to a special rubber-like PVC material. It is designed for outdoor recordings and features additional cotton padding to maintain constant capacitance and prevent handling noise. A dense spiral shield ensures maximum shielding, even under large mechanical loads.
Specifications: * Weight (kg/m): 0.045
* Conductor resistance: < 85 Ω/km
* Capacitance:
* cond./cond. 60 pF/m
* cond./shield 110 pF/m
* Insulation resistance: > 0.1 GΩ x km
* Conductor construction: stranded bare copper, 28 x 0.10 mm
* Conductor cross section: 0.22 mm² (AWG 24)
* Insulation: polyethylene (PE)
* Outer jacket: PVC, matt
* Overall diameter: 6.15 mm
* Min. bending radius: 30 mm
* Working temperature: -20°C / +70°C
