Description

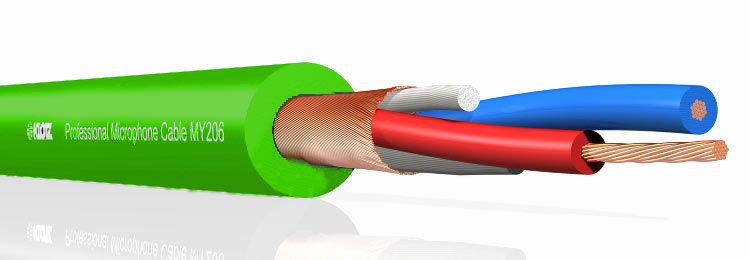

The Klotz MY206GN isa professional microphone bulk cable. It is flexible, PVC-insulated, and features a conductor cross-section of 0.22 mm² (AWG 24). It has an ultra-low capacitance of 60 pF/m (18 pF/ft).
Specifications: * Conductor Construction: stranded bare copper, 28x 0.10 mm
* Insulation: polyethylene (PE)
* Core Arrangement: 2 cores + twisted cotton tracers
* Shielding: bare copper spiral shield
* Conductor Resistance: < 85 Ω/km
* Capacitance:
* cond./cond.: 60 pF/m
* cond./shield: 110 pF/m
* Overall Diameter: 6.15 mm
* Bending Radius: 30 mm
* Working Temperature: -20°C / +70°C
