Description

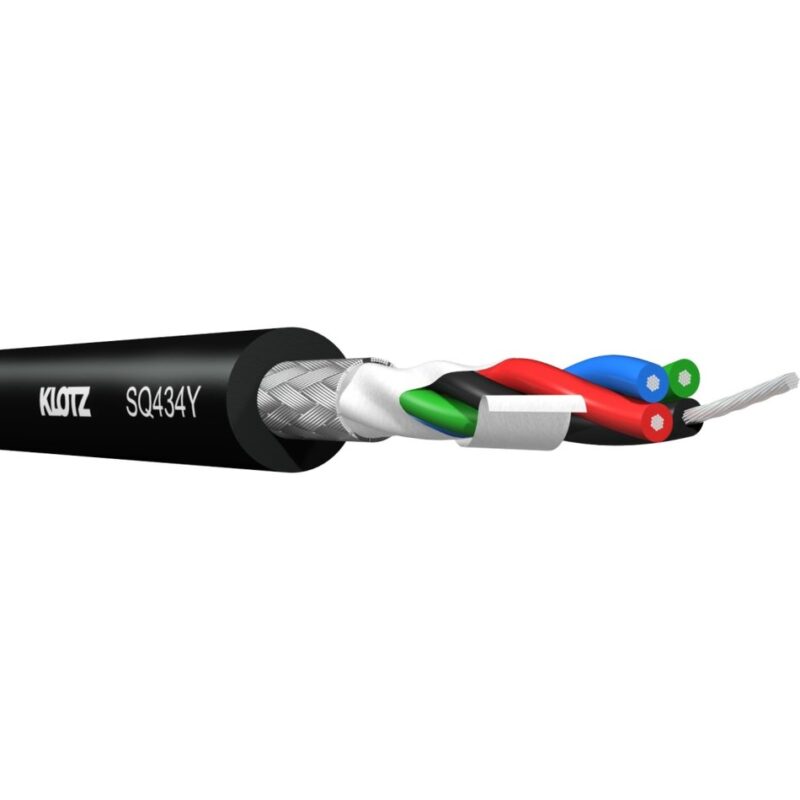

The KLOTZ SQ434Y is a StarQuad pro audio cable with a 4 x 0.34 mm² conductor cross section (AWG 22). It features inner conductors of extra-fine wires (IEC 60228, class 6) and short core stranding, making it ultra-flexible despite its large conductor cross-sections. The insulation is made of polyethylene (PE), and the core arrangement consists of 4 cores twisted to a star quad. Shielding is a tinned copper braid with >90% coverage. The overall diameter is 7.8 mm.
Specifications: * Conductor construction: stranded tinned copper, 43 x 0.10 mm (AWG 22), extra fine stranded acc. to IEC 60228, class 6
* Conductor resistance: 52 Ω/km
* Shield resistance: 15 Ω/km
* Insulation resistance: > 5 GΩ x km
* Capacitance: cond./cond.¹ 135 pF/m, cond./shield¹ 190 pF/m, cond./cond.² 55 pF/m
* Overall diameter: 7.8 mm
* Flame retardancy: acc. to IEC 60332-1-2
* Operating temperature: -20°C / +70°C
