Description

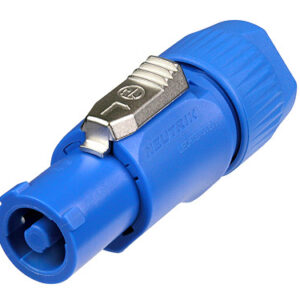

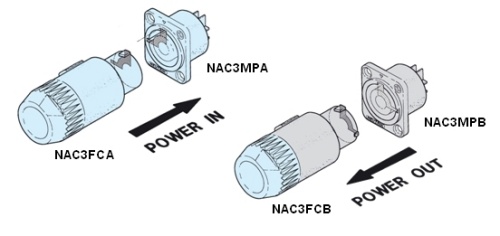

The Neutrik NAC3FCA is a powerCON lockable 3-conductor equipment AC cable connector, power-in, with screw terminals (blue). It is a locking 20 A / 250 V ac appliance coupler with contacts for line, neutral, and pre-mating ground contact. It features a fast and easy twist lock latching system, an extremely robust and reliable ergonomic design, and unique Neutrik chuck type strain relief with improved kink protection by a two-component bushing.
Specifications: * Gender: Female
* Rating Europe: EN 61984:20 A 250 V AC
* Rating USA: UL 1977:20 A 250 V AC
* Contact resistance: ≤ 3 mΩ
* Dielectric strength: 4 kVdc / 2.8 kVac
* Insulation resistance: > 0.1 GΩ (after damp heat test IEC 68-2-30)
* Number of electrical contacts: 2 + PE
* Lifetime: > 1000 mating cycles
* Wiresize: 2,5 mm², 12 AWG
* Locking device: Quick Lock
* Cable O.D.: 6 – 15 mm (range limited to 6 mm – 14 mm acc. VDE)
* Temperature range: -30 °C to +80 °C
* Protection class: IP20
* Flammability Rating: UL 94 HB
* Contacts Material: Bronze (CuSn6) with 4 µm Ag plating
* Insert Material: Polyamide (PA 6 30 % GR)
* Locking element Material: Zinc diecast (ZnAl4Cu1)
* Shell Material: Polyamide (PA 6 30 % GR)
* Strain relief Material: Polyacetal (POM)
