Description

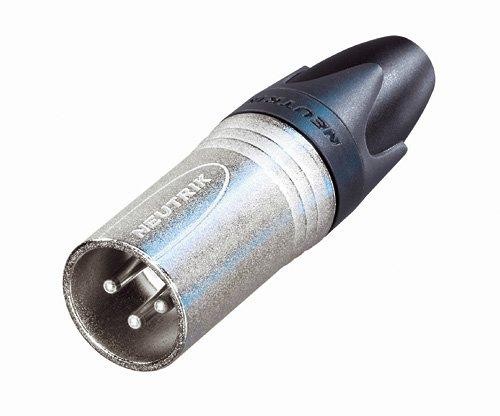

The Neutrik NC3MXX is a male connector featuring an improved locking recess, more stringent housing for increased durability, and an improved chuck type strain relief that provides higher pull-out force and simplifies assembly. It includes a boot with a polyurethane gland for high protection against cable bending stresses.
Specifications: * Rated current per contact: 16 A
* Rated voltage: < 50 V
* Contact resistance: ≤ 3 mΩ
* Dielectric strength: 1.5 kVdc
* Insulation resistance: > 10 GΩ (initial)
* Lifetime: > 1000 mating cycles
* Wiresize (max.): 2.5 mm² / 14 AWG
* Cable O.D.: 3.5 – 8.0 mm
* Wiring: Solder contacts
* Locking device: Latch lock
* Shell plating: Nickel
* Protection class: IP 40
* Temperature range: -30 °C to +80 °C
