Description

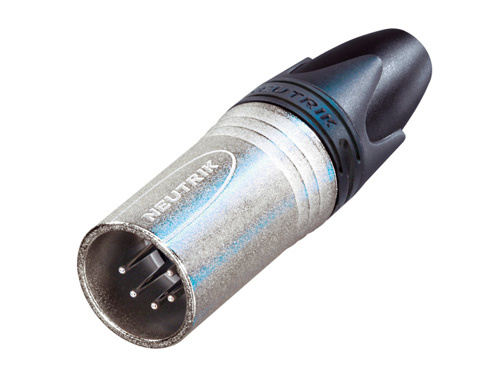

The Neutrik NC5MXX is a male XLR cable connector with improved locking recess and a more stringent housing for increased durability. It features an improved chuck type strain relief for higher pull-out force and easier/faster assembly, and a boot with a polyurethane gland to protect against cable bending stresses. It has a rugged zinc diecast shell and solder contacts.
Specifications: * Connection Type: XLR
* Gender: Male
* Contact resistance: ≤ 3 mΩ
* Dielectric strength: 1.5 kVdc
* Insulation resistance: > 10 GΩ (initial)
* Rated current per contact: 7.5 A
* Rated voltage: < 50 V
* Capacitance between contacts: ≤ 7 pF
* Cable O.D.: 3.5 - 8.0 mm
* Lifetime: > 1000 mating cycles
* Wiresize: max. 1.0 mm² / max. 18 AWG
* Locking device: Latch lock
* Contact plating: 2 µm Ag over 2 µm Ni
* Contacts: Brass (CuZn39Pb3)
* Insert: Polyamide (PA 66)
* Locking element: Zinc diecast (ZnAl4Cu1)
* Shell: Zinc diecast (ZnAl4Cu1)
* Shell plating: Nickel
* Boot: Polyurethan
* Strain relief: Polyacetal (POM)
* Temperature range: -30 °C to +80 °C
* Protection class: IP 40
* Flammability: UL 94 V-0
* Standard compliance: IEC 61076-2-103
