Description

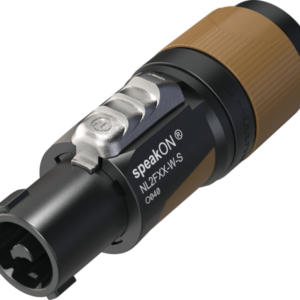

The Neutrik NL2FXX-W-S is a 2-pole speakON cable connector with screw terminal assembly and chuck type strain relief for cable diameters 6 mm to 12 mm. SpeakON connectors are the industry-standard for loudspeaker connections, offering extremely reliable and robust cable connectors with a proven twist lock system. It features an ergonomic design with a slip-proof two-component molded housing, mates with 2-pole and 4-pole chassis connectors (contacts +1/-1), and has a unique Neutrik locking bushing and strain relief.
Specifications: * Electrical Rating (Europe): IEC 61984: 37 A 250 V AC
* Electrical Rating (USA): UL1977: 35 A 250 V AC
* Electrical Rating (Canada): CSA C22.2 No.182.3: 24 A 250 V AC
* Contact Resistance: ≤ 2 mΩ
* Dielectric Strength: 2.8 kVac
* Insulation Resistance: > 10 GΩ (initially)
* Number of electronic contacts: 2
* Cable O.D.: 6 – 12 mm
* Wiresize (mm): 1.5 – 4 mm²
* Wiresize (AWG): 17 – 11 AWG
* Termination: Screw type terminals
* Locking Device: Twist lock
* Lifetime: Typically 5,000 mating cycles
* Temperature Range: -33 °C to +80 °C
* Protection Class: IP20
* Flammability acc. to UL94: V-0
* Materials:
* Contacts: Copper Alloy (Ag plating)
* Insert: Polyamide (PA6.6)
* Locking element: Zinc diecast
* Shell: Polyamide (PA6) / TPE
* Strain relief: Polyketone
* Bushing: Polypropylene / TPEAttention: This product is strictly not intended for use as an AC mains or power supply connector! CAUTION: NOT FOR INTERRUPTING CURRENT.
