Description

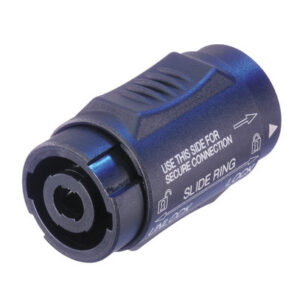

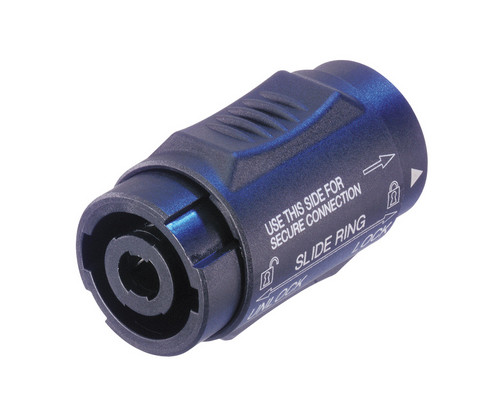

The Neutrik NL4MMX is a lockable 4 pole speakON adapter. It links two NL2/4F*s together for cable extension and can be permanently attached to NL2/4F*. It changes gender to male when permanently locked on the cable and features permanent secure connection on a speakON cable connector using a 2nd lock.
Specifications: * Gender: male
* Contact resistance: ≤ 3 mΩ (after lifetime)
* Dielectric strength: 4 kVdc (peak)
* Insulation resistance: > 1 GΩ (after dampheat)
* Rated current per contact: 15 A rms continuous, 30 A audiosignal (duty cycle 50 %)
* Rated voltage: 250 V (Insulation)
* Contacts: Bronze (CuSn6) with 4 µm Ag plating
* Insert/Shell: Polyamide (PA 6 30 % GR)
* Flammability: UL 94 HB
* Temperature range: -30 °C to +80 °C
* Lifetime: > 5000 mating cycles
* Locking device: Quick Lock
* Attention: speakON is NOT to be used as an AC mains or power supply connector!
