Description

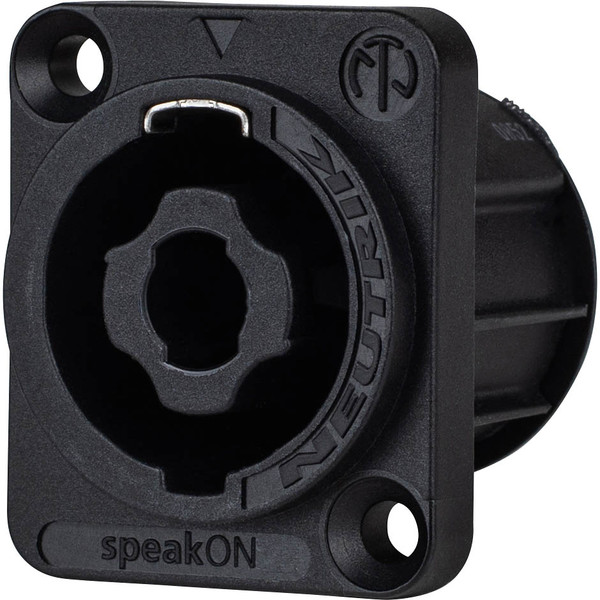

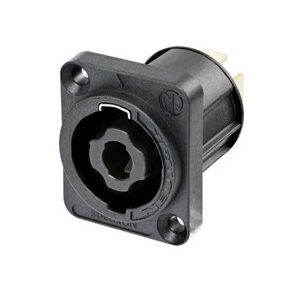

The Neutrik NL4MPXX is a 4 pole chassis connector with a black D-size flange and countersunk thru holes, featuring 3/16″ flat tabs. It is a standard speakON panel mount connector for loudspeaker/amplifier interconnections, featuring a unique metal locking system that makes contact only once fully locked. The receptacle is robust, versatile, and easy to terminate. It is IEC 61984 certified and IEC 62368-1 compliant, utilizing glass-reinforced V-0 materials.
Specifications: * Rated current per contact: 25 A rms continuous (audio rating significantly higher, depending on signal)
* Rated voltage: 250 V ac
* Dielectric strength: 2.8 kVac
* Contact resistance: ≤ 2 mΩ
* Insulation resistance: >0.1 GΩ (after dampheat)
* Lifetime: > 5000 mating cycles

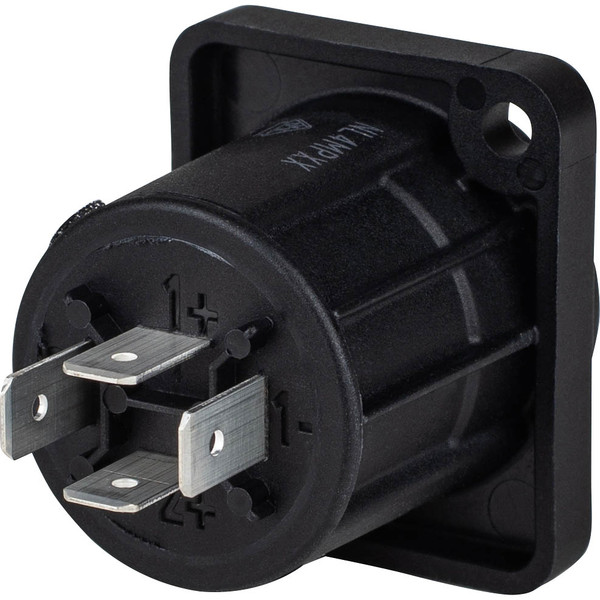

* Termination: 3/16″ flat tabs (e.g. NLFASTON)
* Locking device: Quick Lock
* Chassis shape: D
* Mounting direction: Rear (e.g. MFD) / front mounting
* Contact plating: Ag (Silver)
* Contacts: Copper Alloy
* Locking element: Stainless Steel
* Shell: Polyamide (PA 6.6)
* Temperature range: -30 °C to +80 °C
* Flammability: UL94 V-0
